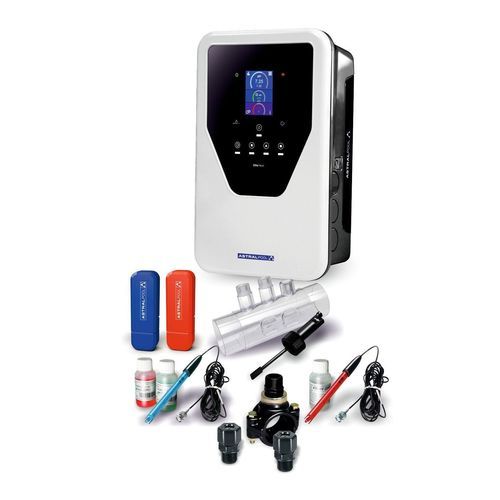

PH swimming pool regulator CONTROL CONNECT

chlorineredoxtemperature

Overview

• Multi-parameter pool water controller for automatic regulation and dosing of pH, ORP (redox), PPM (on specific variants) and temperature.
• Integrated connectivity for remote monitoring and control.
• Available in in-line, panel with measuring chamber and all-in-one configurations.

Key features

• Built-in WiFi and control via Fluidra Pool app.
• 4 digital inputs and 4 digital outputs (relays) to manage filtration pump, heat pump, lighting, refill system, etc.
• Standard water temperature reading and flow sensor included.
• Dedicated outputs for pH and chlorine dosing pumps (dosing pumps included only on the all-in-one version).
• Expandable functions via optional modules (e.g., S-Driver for dosing pumps).

Codes / Variants
CODE | Description | Spare Parts
76750 | Control Connect pH/ORP/Temp panel | See spare parts
76749 | Control Connect pH/ORP/Temp in-line | See spare parts
76751 | Control Connect pH/PPM/Temp panel | See spare parts
70054 | Module S-Driver SD-Pump (pH) | See spare parts
73471 | VSP driver Elite Connect | See spare parts
72454 | Relay Box | See spare parts


Technical specifications

• Connectivity: built-in WiFi, compatible with Fluidra Pool app.
• Configurations: in-line, panel with measuring chamber, all-in-one integrated version.
• Monitored parameters: pH, ORP (redox), PPM (specific variants), temperature.
• I/O: 4 digital inputs and 4 digital outputs (relays) for external equipment control.
• Standard sensors: water temperature reading and flow sensor included.
• Dosing interfaces: dedicated outputs for pH and chlorine dosing pumps (pumps included only on all-in-one version).
• Expandable with accessory modules and compatible kits (see codes).

Compatible accessories

• Module S-Driver SD-Pump (kit 70054) for pH dosing.
• VSP driver Elite Connect (73471) for variable speed pumps.
• Relay Box (72454) for additional relay outputs.
