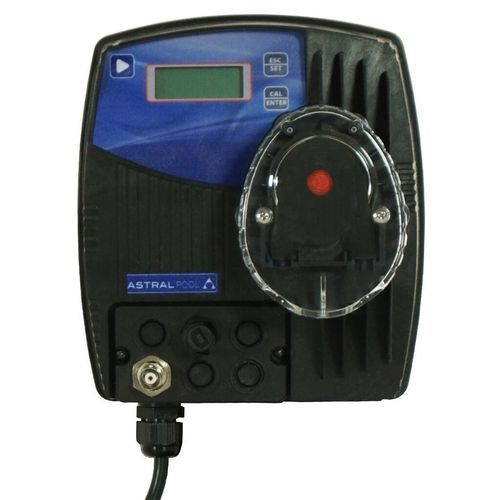

Digital pH-ORP meter REDOX BASIC NEXT

Description

• Automatic ORP (redox) control and dosing system
• Measurement range: 0–1000 mV
• Supplied with basic installation kit: ORP sensor, sensor holder and standard buffer solution (no piping kit included; device designed to control a separate sanitizer unit)
• ABS enclosure with IP65 protection rating
• Digital display showing redox readings
• Remote on-off input (230 VAC) to activate the display for calibration and programming

Table
CODE | Description | Spare parts
66174 | Redox Basic EV Next with ORP electrode and 465 mV buffer solution | 66174
66758 | PT100 sensor | 66758

Technical specifications

• Function: Automatic ORP (redox) control and dosing
• Measurement range: 0–1000 mV
• Included installation kit: ORP sensor, sensor holder, standard buffer solution
• Piping kit: Not included (designed to control a separate sanitizer appliance)
• Enclosure material: ABS
• Protection rating: IP65
• Display: Digital screen displaying redox readings
• Remote input: Remote on-off input (230 VAC) to keep the display active for calibration and programming
• Associated codes / spare parts: 66174 (Redox Basic EV Next with ORP electrode and 465 mV buffer), 66758 (PT100 sensor)
