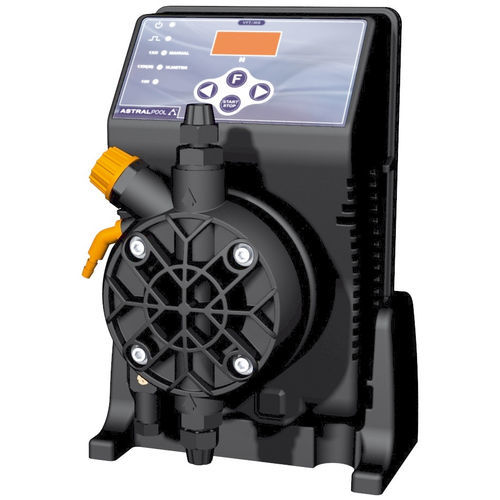

Chemical pump EXACTUS VOLUMÉTRIQUE

commercialelectricmanual

Description
The EXACTUS volumetric dosing pump is an electronic dosing device for wall or base mounting, driven by an integrated microcontroller for compact and reliable control. It delivers precise volumetric dosing for industrial chemical applications and can operate in manual or automatic modes according to input impulses or control signals.

Variants (table)
CODE | Description | Spare Parts
57174 | EXACTUS volumetric 5 L/h 7 bar | See spare parts
57175 | EXACTUS volumetric 5 L/h 10 bar | See spare parts
57176 | EXACTUS volumetric 10 L/h 5 bar | See spare parts
57177 | EXACTUS volumetric 20 L/h 5 bar | See spare parts

Documentation
Manual available: EN / ES / FR

Technical characteristics

• Electronic microcontroller for compact and reliable control
• Designed and manufactured according to CE regulations
• Protection rating: IP65
• Casing: anti-acid plastic (polypropylene)
• Control panel protection: adhesive polyester film, weatherproof and UV resistant
• Mounting: wall or base
• Operation modes: manual and automatic; proportional control by reed/flowmeter impulses (pulse-proportional)
• Standard power supply: 230 V a.c., 50 Hz, single phase
• Optional power supplies: 240 V a.c. 50–60 Hz single phase; 110 V a.c. 50–60 Hz single phase
• Materials in contact with liquid: polypropylene, Viton, PTFE, PVC
• Integrated drain valve; low maintenance; optional outputs and accessories (4–20 mA output, level probe, other voltages) available
