Chemical pump PÉRISTALTIQUE
commercialelectricmetal

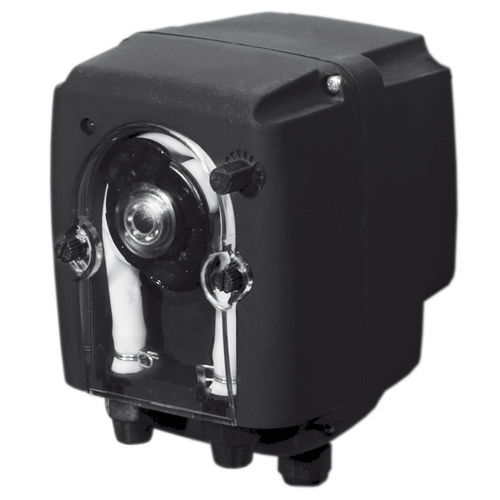

Chemical pump - PÉRISTALTIQUE - ASTRALPOOL - commercial / electric / metal
Chemical pump - PÉRISTALTIQUE - ASTRALPOOL - commercial / electric / metal
Add to favorites
Compare this product

Characteristics

Fluid
for chemicals
Applications
commercial
Operation
electric
Material
metal
Other characteristics
transportable
Flow

Min.: 0.004 m³/h
(0.14126 ft³/h)

Max.: 0.012 m³/h
(0.42378 ft³/h)

Pressure

Min.: 1 bar
(14.504 psi)

Max.: 3 bar
(43.511 psi)

Length

109 mm
(4 in)

Width

90 mm
(3.54 in)

Height

137 mm
(5.39 in)

Weight

0.7 kg
(1.54 lb)

Description

Overview
Peristaltic pump for continuous dosing and metering in industrial applications. Flow adjustable from 10% to 100% by varying motor speed using a potentiometer on the front panel. Power supply: 90–260 V, 50/60 Hz.

Versions / Codes
57178 | Peristaltic pump — 12 L/h, 1 bar | Spare parts available
57179 | Peristaltic pump — 4 L/h, 3 bar | Spare parts available

Documents
Installation manual (PDF) available in EN, ES, FR, IT, PT, DE.

Technical specifications
  • Flow adjustment: 10% to 100%
  • Flow control: motor speed adjusted by potentiometer on the front panel
  • Power supply: 90–260 V, 50/60 Hz
  • Available versions: 57178 — 12 L/h (1 bar); 57179 — 4 L/h (3 bar)
  • Spare parts available for each version
  • Installation manual available as PDF (multilingual)
