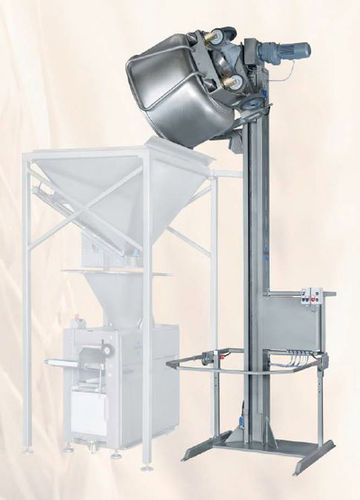

Commercial bowl lift BL-120/161/241

CAPACITY 1322 LBS, HEIGHT UP TO 10 FEET Glimek's Bowl Lift BL-120/161/241 is widely used in industrial bakeries for lifting and tipping a bowl with dough into a bulk hopper or direct into any suitable machine. Glimek's Bowl Lift BL-120/161/241 is widely used in industrial bakeries for lifting and tipping a bowl with dough into a bulk hopper or direct into any suitable machine. CAPACITY: Lifting capacity: 1322 lbs (600 kg) incl the bowl Lifting speed: 16 ft/min (5,0 m/min) Max tipping heihgt: (9'-10") 3000 mm with Glimek SM-241 bowl Power supply: 1,1 kW FEATURES: Can be made for left hand, right hand or straight forward tipping Two gear motors with separate chains and tension sensors Design for bowls from other manufacturers Easy operation and maintenance The lift is controlled with push buttons for up and down movement ACCESSORIES: Can be modified to fit bowls from other manufacturers Higher tipping hight - For tipping height over 3000 and up to maximum 4000 mm Straight forward tipping - Tipping in the same direction as the infeed of the bowl Glimek BL is a solid bowl lift for lifting and tipping a bowl into a bulk hopper, directly into a divider or other similar applications. The lifting capacity is up to 1322 lbs (including bowl). Standard version is adapted to Glimek Mixers. Can be modifi ed for other mixing bowls from other manufacturers as well.
