Interior door MINIMA PLUS

solid woodanodized aluminumsliding

Product overview

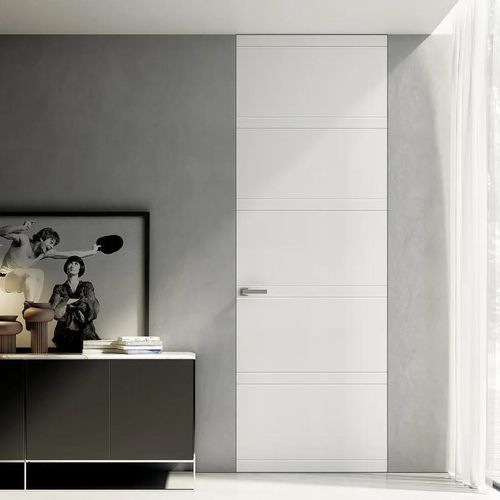

The Bertolotto Porte Filomuro Minima Plus Incisa is a flush-fitting door designed to sit flush with an extruded, oxidised aluminium frame that can be painted to match surrounding walls. The collection includes hinged, in-wall sliding, Doublé and Two-way openings, plus variants with Crystal Glass and Crystal Bi panels. The Minima Plus leaf is 44 mm thick and is compatible with most flush-fitting door pockets from major manufacturers.

Construction and application
The door leaf is set flush within an extruded, oxidised aluminium frame and can be anchored to traditional masonry or plasterboard partitions. The leaf perimeter frame is solid wood and incorporates IPER 4 BOARD ABS perimeter seals on all four sides for consistent edge detailing.

Details

• IPER 4 BOARD perimeter stops in ABS, 8 mm
• Paintable primer available
• Internal core: 100% recycled honeycomb
• Also available in full-height versions
• Full-height available up to 3000 mm
• Standard adjustable anti-sagging tie-rods for heights over 2450 mm

Technical specifications

• Product type: Flush-fitting / flush to wall door (Filomuro)
• Model family: Minima Plus Incisa (BP 1036)
• Frame: Extruded, oxidised aluminium, paintable
• Leaf thickness: 44 mm
• Leaf perimeter frame: Solid wood
• Perimeter seals: IPER 4 BOARD in ABS on all four sides
• Internal core: 100% recycled honeycomb
• Perimeter stops: ABS, 8 mm
• Full-height version: Available up to 3000 mm
• Anti-sagging system: Adjustable tie-rods for heights > 2450 mm
• Compatible with: Traditional masonry and plasterboard installation
• Available opening mechanisms: Hinged, in-wall sliding, Doublé, Two-way; variants with Crystal Glass / Crystal Bi panels
