Interior door MINIMA

solid woodaluminumABS

Overview
The Filomuro Systems collection by Bertolotto Porte gathers multiple models and opening systems designed for interior architecture: hinged, internal sliding (flush-to-wall), Doublé and Bidirectional, with optional Crystal and Crystal Bi glazing.

Minima description

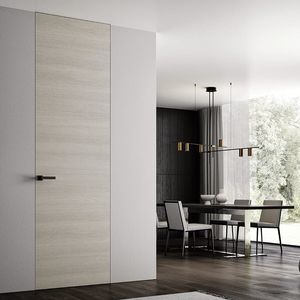

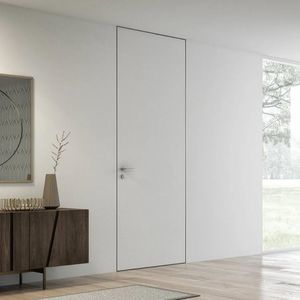

The Filomuro Minima is a coplanar flush-to-wall door featuring an extruded, oxidized aluminum outer frame that can be finished with wall paint. The door leaf is 44 mm thick and rests on a solid wood perimeter frame with IPER 4 BOARD ABS perimeter stops. The system is engineered for anchoring to both traditional masonry and plasterboard partitions.

Available versions and openings

• Available with ratchet opening system

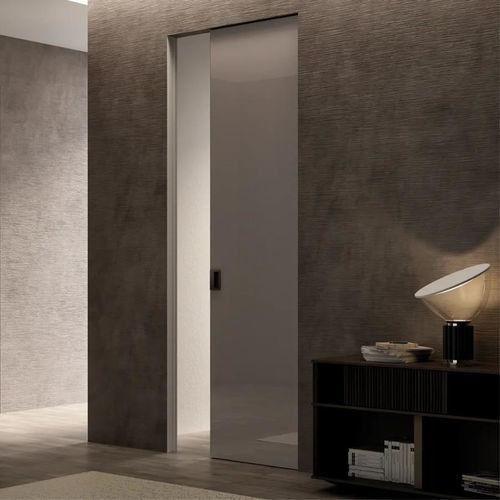

• Internal wall sliding (flush-to-wall) configuration
• Also available in Doublé and Bidirectional configurations

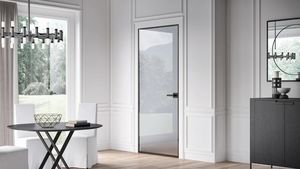

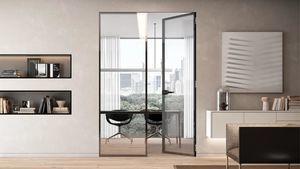

• Available with Crystal and double Crystal Bi glazing options
• Full-height version available

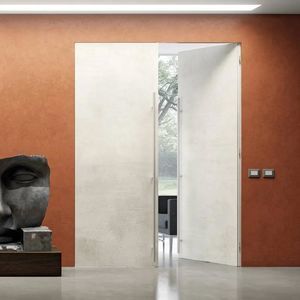

• Available as double door
• Option with applied mirror

Details

• IPER 4 BOARD perimeter stops in ABS, 0.8 mm
• Paintable primer on frame for wall paint integration
• Predisposition for installation on masonry and plasterboard
• Internal core: recycled honeycomb (specified as 100 # 37)
• Full-height version available up to 3000 mm
• Standard adjustable anti-sagging tie-rods for heights over 2450 mm
• Color customization available across RAL and NCS ranges

Technical specifications

• Series / Model: Minima
• Door type: Flush-to-wall (filomuro) coplanar door
• Leaf thickness: 44 mm
• Perimeter frame: solid wood
• Perimeter stops: IPER 4 BOARD in ABS, 0.8 mm
• Outer frame: extruded and oxidized aluminum (paintable)
• Internal structure: recycled honeycomb (100 # 37)
• Available openings: hinged, internal sliding, ratchet system, Doublé, Bidirectional
• Glass options: Crystal and Crystal Bi (double glazing)
• Available options: full-height (up to 3000 mm), double door, applied mirror
• Anti-sagging tie-rods: adjustable for heights over 2450 mm
• Installation: suitable for traditional masonry and plasterboard
