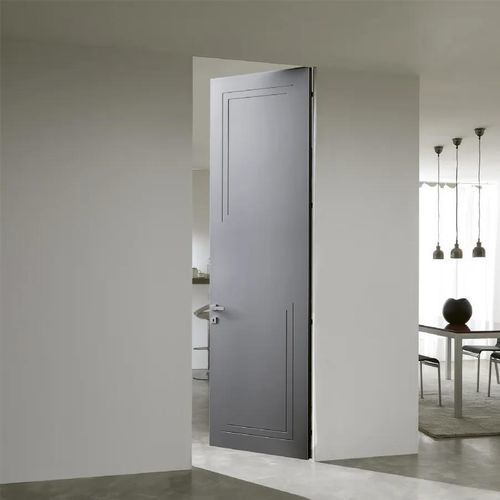

Interior door MASSIMA

solid woodaluminumswing

Overview
The Massima flush-mounted swing door is a flush-to-wall architectural door with an extruded aluminium perimeter frame finished with a porous white top coat that can be painted with wall paints. It is engineered for anchoring on both traditional masonry and plasterboard partitions, making it suitable for interior architectural applications.

Leaf and Frame
The Filomuro leaf is 58 mm thick and features a solid wood perimeter frame with IPER 4 BOARD ABS perimeter striker seals. The Massima perimeter frame is in extruded aluminium with a paintable porous primer and is available in flush-fitting push or pull configurations.

Hardware and Installation
Massima is supplied with a magnetic lock and three adjustable concealed hinges; a fourth concealed hinge is fitted for heights over 2350 mm. The system is prepared for secure anchoring on masonry and plasterboard supports, facilitating on-site finishing and integration with wall surfaces.

Details

• IPER 4 BOARD perimeter stops in ABS (0.8 mm)
• Paintable porous primer on aluminium frame
• Available frame extensions from 75/80 up to 200/205 mm
• Prepared for installation on masonry and plasterboard
• Internal core: 100% recycled honeycomb structure
• Also available in full-height version
• FULL HEIGHT version available up to 3000 mm without upper crosspieces
• Standard adjustable anti-sagging tie-rods for heights over 2450 mm

Technical specifications

• Model: 1006 (flush-mounted swing door)
• Collection / System: Massima (Filomuro flush-to-wall system)
• Finish shown: Quartz lacquer
• Perimeter frame: extruded aluminium with paintable porous top coat
• Leaf thickness: 58 mm
• Perimeter frame internal: solid wood perimeter frame
• Seals: IPER 4 BOARD ABS perimeter striker seals
• Core: 100% recycled honeycomb internal structure
• Lock: magnetic lock supplied
• Hinges: 3 adjustable concealed hinges standard; 4th concealed hinge for heights > 2350 mm
• Available versions: flush-fitting push or pull; full-height up to 3000 mm without upper crosspieces
• Available extensions (frames): from 75/80 up to 200/205 mm
• Prepared for anchoring on masonry and plasterboard
• Anti-sagging: adjustable tie-rods for heights over 2450 mm
