Interior door MINIMA PLUS AVENUE

anodized aluminumABSsolid wood

Overview The Filomuro Systems collection by Bertolotto Porte is available in multiple models and opening solutions: hinged, internal wall sliding, Doublé and Bidirectional systems, and with Crystal and Crystal Bi glazed leaves.

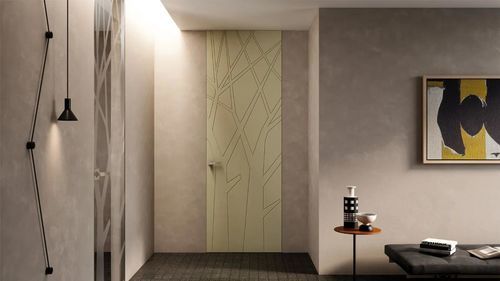

Product The Filomuro Minima Plus Avenue is a flush-to-wall (coplanar) door featuring an extruded, oxidized aluminum frame prepared for wall paint. The leaf is 44 mm thick with a solid wood perimeter frame and IPER 4 BOARD ABS perimeter stops. The door is designed for anchoring to both traditional masonry and plasterboard structures and is compatible with the main filomuro box systems on the market.

Details

• IPER 4 BOARD perimeter stops in ABS, 8 mm
• Paintable primer on frame
• Prepared for installation on masonry and plasterboard
• Internal core: 100% recycled honeycomb panel (100 # 37)
• Available in full-height version
• FULL HEIGHT option up to 3000 mm
• Available with double leaf
• Available with applied mirror
• Standard adjustable anti-sagging tie-rods for heights over 2450 mm

Technical specifications

• Door type: flush-to-wall (coplanar) door
• Model: Minima Plus Avenue
• Frame: extruded and oxidized aluminum, paintable
• Perimeter frame: solid wood
• Perimeter stops: IPER 4 BOARD in ABS (8 mm)
• Door thickness: 44 mm
• Internal structure: recycled 100 # 37 honeycomb panel
• Mounting: suitable for traditional masonry and plasterboard
• Available openings: ratchet opening system, internal wall sliding, Doublé, Bidirectional
• Glass options: Crystal and Crystal Bi
• Full-height option: available up to 3000 mm
• Accessories/options: double door, applied mirror
• Stability: standard adjustable anti-sagging tie-rods for heights over 2450 mm
