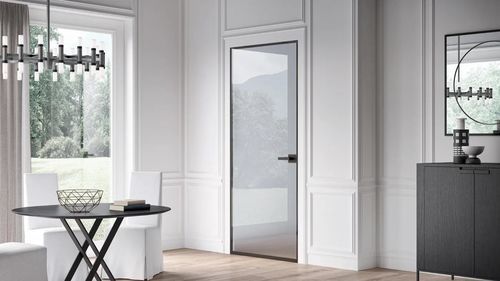

Interior door CRYSTAL

solid woodanodized aluminumglass

Product overview
The Filomuro Systems collection by Bertolotto Porte includes multiple models and opening systems: hinged, internal wall sliding (muro), Doublé and Bidirectional, available with Crystal and Crystal Bi glass.

Minima door
The Filomuro Minima is a flush-to-wall (coplanar) door featuring an extruded and anodized aluminum exterior frame, paintable to match wall finishes. Designed for anchoring on traditional masonry and on plasterboard, the Minima door has a total thickness of 44 mm and a perimeter frame in solid wood with IPER 4 BOARD perimeter stops in ABS.

Details

• IPER 4 BOARD perimeter stops in ABS, 8 mm
• Paintable primer finish
• Predisposed for masonry and plasterboard installation
• Internal structure in recycled 100#37 honeycomb
• Available in full-height version
• Full-height option up to 3000 mm
• Available with double door configuration
• Available with applied mirror
• Standard adjustable anti-sagging tie-rods for heights over 2450 mm

Technical specifications

• Series / Model: Minima
• Overall door thickness: 44 mm
• Perimeter frame material: solid wood
• Exterior frame: extruded and anodized aluminum (paintable)
• Perimeter stops: IPER 4 BOARD in ABS (8 mm)
• Internal structure: recycled honeycomb (100#37)
• Available opening systems: hinged, internal wall sliding (muro), Doublé, Bidirectional, ratchet opening
• Glass options: Crystal glass, Crystal Bi (double) glass
• Available configurations: single door, double door, version with applied mirror
• Full-height option: available up to 3000 mm
• Anti-sagging system: adjustable tie-rods standard for heights over 2450 mm
• Installation predisposition: suitable for traditional masonry and plasterboard
• Finish: paintable primer
