Interior door MINIMA

aluminiumsolid woodswing

Overview

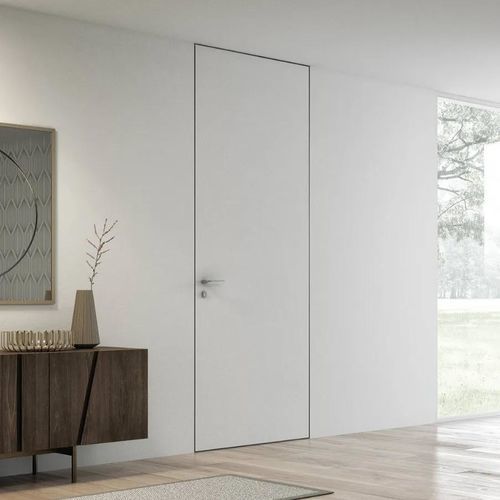

The range of Bertolotto flush-to-wall doors offers architects and interior designers a broad selection of models and flush integration solutions. The Minima flush-to-wall door features a minimalist aesthetic and adaptable integration with the wall plane. It is supplied with a treated extruded aluminium frame designed to be finished with wall paint or wallpaper for tailored architectural results. Minima doors are engineered for straightforward installation on both traditional masonry and plasterboard partitions.

Construction and options
The door leaf measures 44 mm in thickness and comprises a solid wooden perimeter frame with IPER 4 BOARD ABS perimeter stops for long-lasting performance. Minima is available in multiple opening configurations: hinged, internal sliding, Doublé and Bidirectional. Glazing options include Crystal or double Crystal Bi leaves. Notable features include a paintable primer base, a hollow internal core produced from 100% recycled material, and a FULL HEIGHT version available up to 3000 mm. For leaves above 2450 mm, adjustable anti-warping braces are supplied as standard to ensure dimensional stability.

Details

• Extruded aluminium frame, treated for finishing with paint or wallpaper
• Suitable for installation on masonry and plasterboard walls
• Door leaf thickness: 44 mm
• Solid wooden perimeter frame
• IPER 4 BOARD ABS perimeter stops
• Opening options: hinged, internal sliding, Doublé, Bidirectional
• Glazing options: Crystal or double Crystal Bi
• Paintable primer base
• Hollow internal core made from 100% recycled material
• Available in FULL HEIGHT version up to 3000 mm
• Adjustable anti-warping braces standard for heights over 2450 mm

Technical specifications

• Perimeter stops: IPER 4 BOARD ABS, thickness 0.8 mm
• Leaf thickness: 44 mm
• Frame: extruded aluminium, treated for paint or wallpaper application
• Internal structure: hollow, 100% recycled material
• Finish: paintable primer base
• Available heights: up to 3000 mm (FULL HEIGHT)
• Standard equipment for tall leaves: adjustable anti-warping braces for heights > 2450 mm
• Available opening types: hinged, internal sliding, Doublé, Bidirectional
• Glazing options: Crystal, double Crystal Bi
