Interior door MASSIMA

solid woodaluminiumABS

Overview

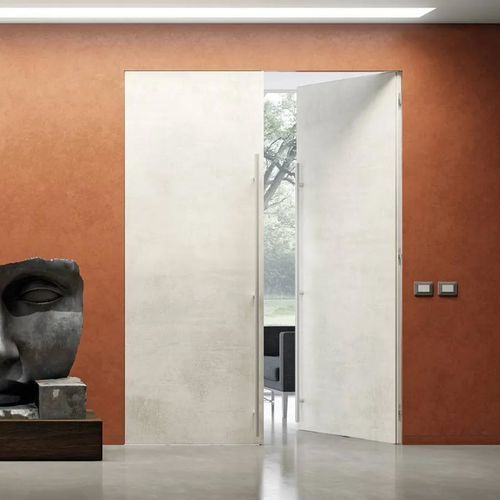

The Maximum flush-to-wall door is a flush-mounted door with an extruded aluminium perimeter frame in a painted porous white finish, suitable for painting and designed for anchoring to both traditional masonry and plasterboard.

Construction
The leaf thickness is 58 mm. The leaf comprises a solid wood perimeter frame with IPER 4 BOARD perimeter battens in ABS. The Maximum frame can be finished with water-based paints and is available in flush-to-push or flush-to-pull opening versions.

System and hardware
The Maximum flush-to-wall system includes a range of extensions to cover standard wall depths available on the market. It is supplied with a magnetic lock and three adjustable concealed hinges; a fourth concealed hinge is added for heights exceeding 2350 mm.

Details

• IPER 4 BOARD perimeter battens in ABS, 0.8 mm
• Primer, paintable
• Available extensions from 75/80 to 200/205
• Designed for installation on masonry and plasterboard
• Internal structure made of 100% recycled honeycomb
• Also available in full-height version
• Full-height option up to 3000 mm without upper crossover bars
• Adjustable anti-warping rods standard for heights over 2450 mm

Technical specifications

• Leaf thickness: 58 mm
• Perimeter frame: solid wood
• Perimeter battens: IPER 4 BOARD in ABS, 0.8 mm
• Exterior frame: extruded aluminium with painted porous finish (white)
• Internal structure: 100% recycled honeycomb
• Available openings: flush-to-push or flush-to-pull
• Standard hinges: 3 adjustable concealed hinges (4th hinge for heights > 2350 mm)
• Lock: magnetic lock supplied
• Available extensions: from 75/80 to 200/205
• Full-height option: up to 3000 mm without upper crossover bars
• Anti-warping rods: adjustable, standard for heights over 2450 mm
• Installation: suitable for masonry and plasterboard
