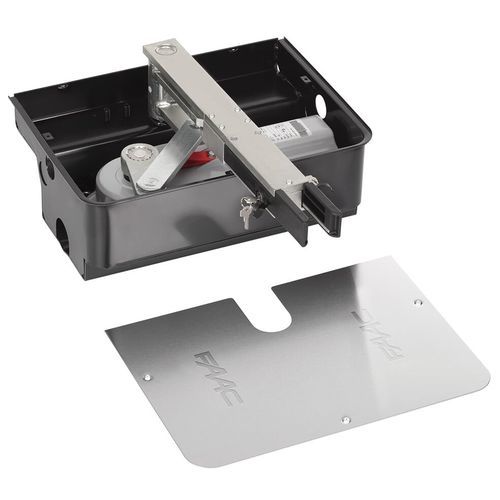

Swing gate automation 770N 230V

Underground Electromechanical Operator 24V and 230V Invisible operator Access to the operator is possible without removing the leaf Manual release with double lever accessible both from inside and outside of the property (Patented) MAX LEAF WEIGHT 500 Kg MAX SINGLE LEAF WIDTH 2 - 3.5 m (with electric lock) USE FREQUENCY Continuous use (770N 24V) - S3 30% (770N 230V) Underground operator Designed for those who want to automate their gate without compromising its aesthetics, the FAAC 770N is an underground operator, making it both invisible and silent. The system can be installed in two phases: first, by embedding the empty housing boxes along with the electrical conduits; then, by installing the motors once the gate is ready for automation. Optimal safety The FAAC 770N system is self-locking, meaning the gate stays securely locked in any position, no electric lock required. Anti-crushing safety is ensured by the electronic torque limiter on the control board, in full compliance with EN 12445 and EN 12453 European standards. A key-operated manual release allows for easy unlocking in case of power failure. Technical description Power supply voltage 220-240V~ 50/60 Hz Electric motor With brushes 24V DC (770N 24V) - Asynchronous single phase (770N 230V) Max power 70 W (770N 24V) - 380 W (770N 230V) Max leaf weight 500 Kg Max leaf width 2 m (3.5 m with electric lock) Use frequency Continuous use(770N 24V) - S3 30% (770N 230V)
