Swing gate automation 400

Overview

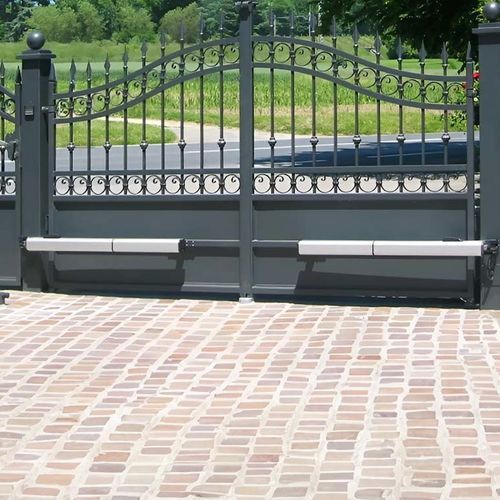

Hydraulic swing gate operator FAAC 400 for external installations, designed for medium to large leaves with multiple locking and speed options. Suitable for continuous lubrication and ultra-quiet operation in diverse weather conditions.

Key features

• Key-protected manual release
• Extremely silent movement
• Hydraulic locking resistant to intrusion attempts (CBC and CBAC versions)

Performance highlights
Max single leaf width: 2.2 m (standard) — up to 7 m with electric lock. Use frequency: 50–70 cycles/hour. Max opening angle: 125°.

Hydraulic technology
Hydraulic components operate with constant lubrication and cooling provided by oil, ensuring smooth, low-noise movement and stable performance from −20°C to +55°C. System design reduces maintenance needs and energy consumption.

Versions
Available versions to match installation requirements: CBC (locking on closing), CBAC (locking on opening and closing), SB (non-locking), SBS (non-locking, slow speed), plus long pillar variants CBAC L and SBS L for large posts.

Models and item codes

• 400 CBC — 104205
• 400 SB — 104206
• 400 SBS — 104203
• 400 CBAC — 104201
• 400 CBAC L — 104202
• 400 SBS L — 104220

Additional product notes
Designed for hydraulic operation with inherent lubrication and cooling. Multiple configurations available to accommodate different pillar sizes and installation needs.

Technical specifications

• Power supply voltage: 220-240V~ 50/60 Hz
• Electric motor: asynchronous single-phase
• Max power: 220 W
• Max leaf opening angle: 125°
• Use frequency: 50-70 cycles/hour
• Max leaf width: 2.2 m (standard) | 7 m with electric lock
• Operating temperature range: -20°C to +55°C
• Versions: CBC, CBAC, SB, SBS, CBAC L, SBS L
• Security: hydraulic lock (CBC / CBAC) resistant to intrusion attempts
• Key-protected manual release
• Low maintenance, reduced energy consumption
