Swing gate automation 415

Product overview
The FAAC 415 is an electromechanical in-axis thrust operator for external swing gate automation, available in 24V and 230V versions. It provides smooth, quiet movement with optional slowdown to protect mechanical components. Functions (automatic re-closing, pedestrian opening, etc.) depend on the control panel used.

Main features

• In-axis thrust operator for external swing gates
• Available rod strokes: 300 mm (max leaf up to 3 m) and 400 mm (max leaf up to 4 m)
• Horizontal cable exit for near-ground (low) installations
• Optional slowdown for fluid gate motion
• Supports automatic re-closing and pedestrian opening depending on control unit
• Key-operated manual release for opening in case of power failure

Quick specs
Max single leaf width: 2.5 - 4 m (with electric lock)
Use frequency: Continuous use (24V) / S3 – 30% (230V)

Model / Item code
Model | Item code
415 24V | 1044151
415 L 24V | 1044171
415 230V | 104415
415 L 230V | 104417

Additional product notes

• Max leaf opening angle: 110°
• Innovation symbols: 2

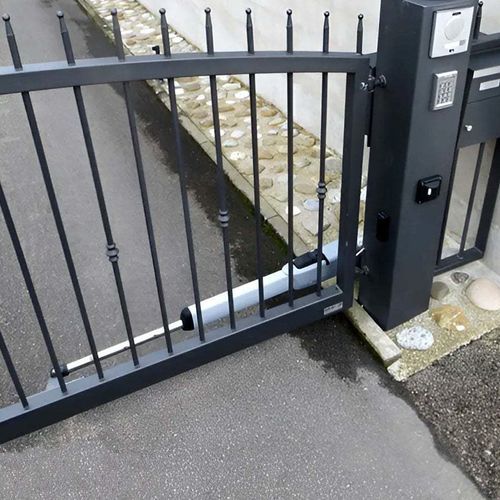

• Example installations and gallery images available showing FAAC 415 installations

Technical specifications

• Power supply voltage: 220-240V~ 50/60 Hz
• Electric motor: brushed 24V DC (24V version); asynchronous single-phase (230V version)
• Max power: 70 W (24V version); 300 W (230V version)
• Max leaf width: 2.5 - 4 m (with electric lock)
• Use frequency: Continuous use (24V version); S3 – 30% (230V version)
• Max leaf opening angle: 110°
• Key release: key-operated manual release for opening in case of power failure
