Swing gate automation 392 C
swing-arm

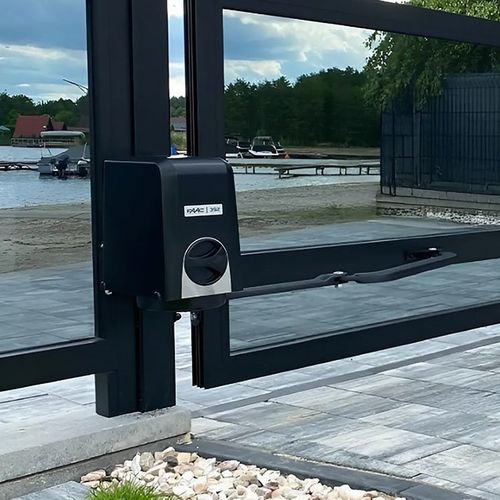

Swing gate automation - 392 C - FAAC - swing-arm
Swing gate automation - 392 C - FAAC - swing-arm
Swing gate automation - 392 C - FAAC - swing-arm - image - 2
Swing gate automation - 392 C - FAAC - swing-arm - image - 3
Swing gate automation - 392 C - FAAC - swing-arm - image - 4
Add to favorites
Compare this product

Characteristics

Applications
swing gate
Options
swing-arm

Description

Overview
  • The actuator integrates the E034 electronic control board, programmable locally via display and button or remotely via Simply Connect, offering two programming levels to match installation requirements and regulatory standards.
  • Compatible with the optional XLC module to reduce standby power to 0.5 W (2 W with Simply Connect). Supports alternative energy sources such as solar panels to lower operating costs and environmental impact.
  • Compact, functional aesthetics with clear, essential lines suited to technical installations.


Key performance
  • Max single leaf width: 0.5 - 2.5 m (with electric lock)
  • Use frequency: Continuous use
  • Flexible installation: articulated arm adapts to constrained layouts and large pillars
  • Electromechanical motor designed for steady, low-noise operation


Product information - Models and item codes
392 C | 104583
392 | 104584

Technical description
  • Power supply voltage: 220 - 240 V AC @50/60 Hz
  • Electric motor: Brushed 24 V DC
  • Max torque: 300 N/m
  • Max angular speed: 8.5°/s
  • Max leaf opening angle: 120°
  • Max leaf width: 2.5 m with electric lock
  • Use frequency: Continuous use
  • Protection class: IP44
  • Operating ambient temperature: -20° C ÷ +65° C
  • Dimensions (LxDxH): 183 x 256 x 304 mm


Electronics & connectivity
  • E034 electronic control board integrated onboard; programmable locally via display/button or remotely via Simply Connect
  • Compatible with optional modules (e.g., XLC) to reduce standby consumption and enable remote control/connectivity


Additional notes
  • Supports alternative energy sources (solar) to reduce environmental impact and running costs
  • Designed for installations where articulated arm operation is required (e.g., large pillars or constrained geometries)


Specifications
  • Power supply: 220 - 240 V AC @50/60 Hz
  • Motor: 24 V DC (with brushes)
  • Max torque: 300 N/m
  • Max angular speed: 8.5°/s
  • Max opening angle: 120°
  • Max single leaf width: 0.5 - 2.5 m (with electric lock)
  • Use frequency: Continuous use
  • Protection class: IP44
  • Operating temperature range: -20° C to +65° C
  • Dimensions (L x D x H): 183 x 256 x 304 mm
