Swing gate automation S2500I

gate

Product overview

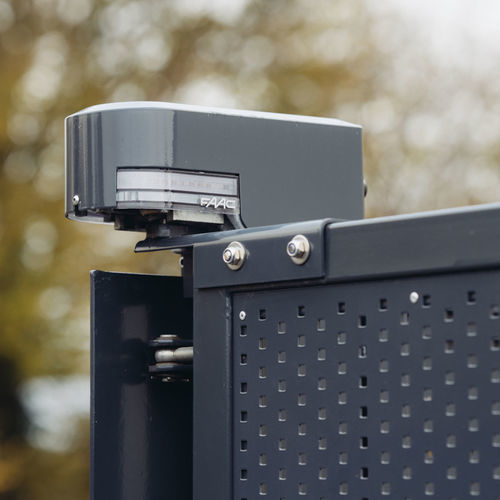

The FAAC S2500I is an electromechanical operator fully integrated into a swing gate column. It is suitable for single leaves up to 2.5 m in length and up to 250 kg in weight and can be installed during new construction or retrofitted to existing gates.

Design and safety
The unit features an aluminium cover available painted RAL 7021 or neutral (paintable). An integrated flashing light, visible from both inside and outside the property, and adjustable built-in mechanical stops support safe and precise operation.

Key data

• Maximum leaf weight: 250 kg
• Maximum single leaf width: 2 m (standard) — 2.5 m with electric lock
• Compatible pillar square sections: 100×100, 120×120, 150×150 mm

Technical table
Model: S2500I 24V
Item code: 104250

Installation and integration
The S2500I is designed for integration into metal columns and can be retrofitted by first installing only the hinge and cover. Its compact, integrated layout permits use on newly built or existing gates.

Accessories and control boards

• E034 – Electronic control unit
• E124S – Electronic control unit
• Cover S2500I RAL 7021
• Cover S2500I RAL Neutral
• Hinge S2500I
• Other compatible accessories: FDS transmitters, XTO/XTR transmitters, XP photocells, XLED flashing light, XKP keypads, Safety Edge Radio System

Technical specifications

• Model: S2500I 24V
• Item code: 104250
• Power supply: 220-240V ~ 50/60 Hz
• Electric motor: Brushed 24V DC
• Max power: 40 W
• Max leaf weight: 250 kg
• Max single leaf width: 2 m (standard); 2.5 m with electric lock
• Compatible pillar square sections: 100×100, 120×120, 150×150 mm
• Integrated flashing light (visible inside and outside)
• Adjustable integrated mechanical stops for accurate opening/closing positions
• Aluminium cover available painted RAL 7021 or neutral (paintable)
