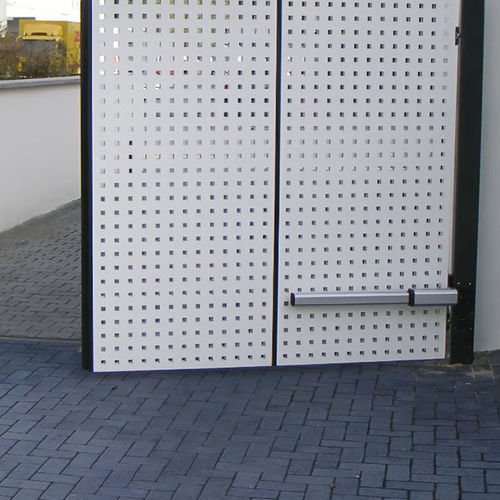

Swing gate automation 402

swing

Overview

• Highly compact, ideal for installations where space is at a premium.
• Anti-corrosion cover with high weather resistance.
• Available in CBC (self-locking on closing) and SB/SBS variants for wider leaves.

Quick facts

• Max single leaf width: 1.8 - 3.0 m (depending on version and with electric lock)
• Use frequency: 55 cycles/hour

Hydraulic Technology
Designed for intensive applications, hydraulic technology provides constant lubrication of internal components, resulting in excellent reliability and long service life. Operation is smooth and quiet in all weather conditions and in extreme temperatures from -20°C to +55°C. Maintenance requirements are minimal and energy consumption remains low.

Self-locking or Reversible
Closing locking can be obtained directly by the hydraulic motor on the 402 CBC version (max leaf 1.80 m). For the 402 SB (max leaf 2.20 m) and 402 SBS (max leaf 3.00 m) versions, locking can be achieved with an electric lock as required.

Model / Item code
402 CBC — 104468
402 SBS — 104474

Technical specifications

• Power supply voltage: 220-240V~ 50/60 Hz
• Electric motor: Asynchronous single-phase
• Max power: 220 W
• Max leaf opening angle: 110°
• Use frequency: 55 cycles/hour
• Max single leaf width: 1.8 m (standard) — up to 3.0 m with electric lock depending on version
• Versions and max leaf widths: 402 CBC (self-locking) max 1.80 m; 402 SB max 2.20 m; 402 SBS max 3.00 m
• Operating temperature range: -20°C to +55°C
• Anti-corrosion coating for high weather resistance
• Compact design suitable for installations with limited space
