Swing gate automation S418gateswing
Add to favorites
Compare this product
Characteristics
- Applications
- swing gate, gate
- Options
- swing
Description
Overview
Key data
Technical description
Model: FAAC S418 24V
Item code: 104301
Installation flexibility
Example installation / Gallery note
Specifications / technical data
- 24V electromechanical operator for swing gates with adjustable high speed
- Multi-position fixing bracket for non-welded installation
- Integrated opening and closing mechanical stops (may avoid additional anti-crushing device depending on configuration)
Key data
- Max single leaf width: 2.3 - 2.7 m (with electric lock)
- Use frequency: Continuous use
- Innovation symbols: 2
Technical description
Model: FAAC S418 24V
Item code: 104301
- Power supply voltage: 220-240V ~ 50/60 Hz
- Electric motor: 24V DC with brushes
- Max motor power: 35 W
- Max leaf opening angle: 110°
- Useful rod stroke: 350 mm (380 mm without mechanical stops)
- Use frequency: Continuous use
Installation flexibility
- 350 mm useful stroke (380 mm without mechanical stops) provides flexibility when selecting installation dimensions
- Adjustable fixing clips and multi-position bracket permit non-welded mounting and adaptation to different gate geometries

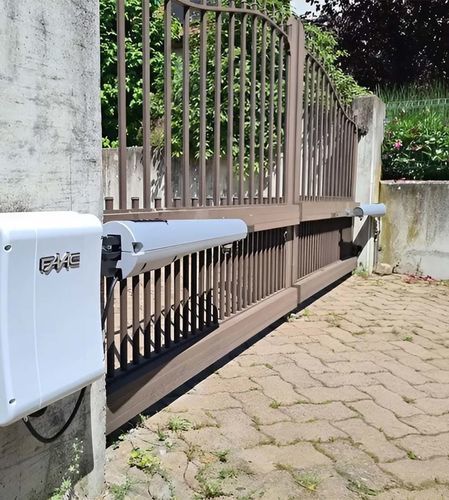

Example installation / Gallery note
- Example installation images available showing FAAC S418 in swing gate applications (visual documentation: installation examples and gallery photographs)
Specifications / technical data
- Model designation: S418
- Item code: 104301
- Power supply voltage: 220-240V ~ 50/60 Hz
- Motor type: 24V DC with brushes
- Maximum motor power: 35 W
- Maximum leaf opening angle: 110°
- Maximum single leaf width (with electric lock): 2.3 - 2.7 m
- Useful rod stroke: 350 mm (380 mm without mechanical stops)
- Use frequency: Continuous use
- Fixing system: multi-position fixing bracket and adjustable fixing clips for non-welded installation
- Integrated opening and closing mechanical stops (may avoid additional anti-crushing device depending on configuration)
