Roof access hatch DRL

green roofrectangularplastic

Overview

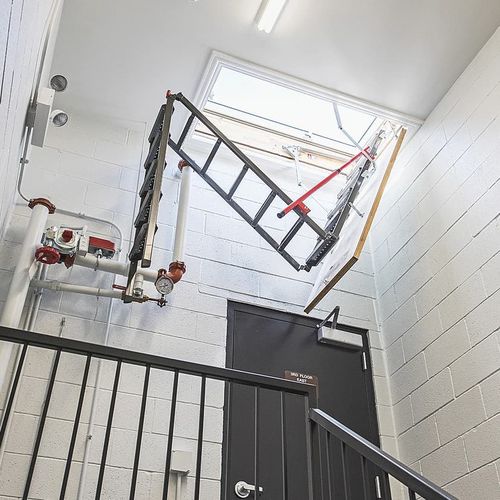

This roof access door provides safe, internal access to flat roofs and is suitable for integration with the FAKRO LML loft ladder. The unit is delivered fully assembled for faster installation and is designed for roofs with pitches from 0° to 5°.

Comfort and safety
The flap opens smoothly and is held open by built-in gas springs, requiring minimal effort to operate. An anti-slip tape next to the roof exit improves footing in wet or icy conditions. Optional locks can be fitted to prevent unauthorised opening.

Thermal performance and construction
The product features multi-chamber uPVC profiles, insulating filling and effective seals to reduce heat loss and avoid thermal bridges. The moisture-resistant construction can be mounted directly on the roof or on an optional raised XRD/W base (suitable for green roofs). Airtightness and wind/water resistance are designed for demanding building applications.

Key features

• Insulated structure with multi-chamber uPVC profiles and sealed flap
• Ready for integration with LML loft ladders — compact combined access solution
• Delivered fully assembled for faster installation
• Built-in gas springs — smooth, stable opening and holding in open position
• Anti-slip tape next to the roof exit for improved safety
• Suitable for roof pitches from 0° to 5° (flat roofs)

Applications
Designed for energy-efficient, airtight internal access to flat roofs. Typical uses include houses, offices and buildings with green roofs where thermal performance and safe internal access are required.

Technical specifications

• Commercial size (W × H): 60x120 cm
• External frame width: 809 mm
• External frame height: 1651 mm
• Window frame clear opening width: 506 mm
• Window frame clear opening height: 1348 mm
• Window reveal clear opening width: 547 mm
• Window reveal clear opening height: 1389 mm
• Window colour: PVC white
• External cladding colour: Grey RAL 7022
• Window material: multi-chamber uPVC profile
• Control system: Manual
• Solar power supply: No
• Number of seals: 2
• Thermal transmittance Uw: 0.67 W/m2K
• Airtightness class (air permeability): Class 4
• Wind load resistance: Class C5/B5
• Impact resistance: Class 5 - 950 mm
• Watertightness: E900
• Walk-on window: No
• Acoustic insulation Rw: 30 dB
• Roof pitch (min.–max.): 0° - 5°
• Product weight: 70 kg
• Package dimensions (W × L × H): 0.91 m × 1.75 m × 0.24 m
