Attic retractable ladder LWF 60

foldingwoodfor domestic use

Overview

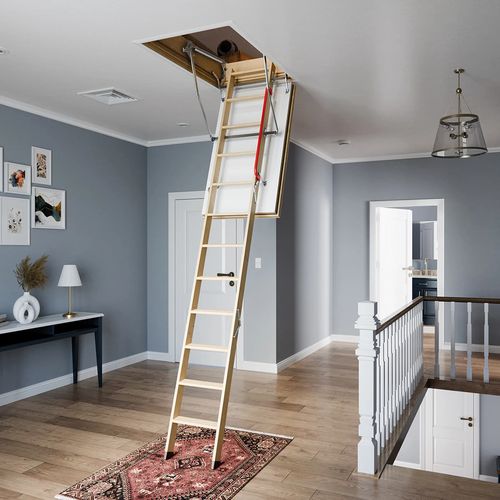

The LWF 60 loft ladder is a wooden, 3-section loft ladder offering up to 60 minutes of fire penetration protection. Designed for safe and comfortable attic access, the product combines fire resistance, thermal performance and practical installation features: peripheral seals, anti-slip treads and a handrail improve user safety and comfort, while the unloading mechanism simplifies unfolding and folding.

Key features

• Fire-resistant hatch providing up to 60 minutes of protection (EI 1 / EI 2 60 min)
• 3 peripheral seals improving thermal tightness and energy efficiency
• Unloading mechanism available for easy unfolding and folding (recommended accessory LXM-W for 3-section ladders)
• 3-section compact ladder construction — folds neatly into the box
• Anti-slip treads for safe footing
• Sturdy handrail for added stability
• Pinewood box and ladder construction with aesthetic finish; white hatch
• Designed to optimise space (maximum projection when unfolded: 129 cm for the selected commercial size)
• Maximum user load 160 kg

Design and comfort

• Aesthetic finish: smooth white hatch paired with natural pinewood grain for interior integration
• Anti-slip treads flush with stringers to reduce slipping risk
• Unloading mechanism and appropriate ladder angle (approx. 69–71.4°) for easy and comfortable use
• Stile ends protect the floor surface and secure ladder stability

Dimensions / Performance
Commercial size (W x L/H): 55 x 120/280 cm
Ceiling opening dimensions (W x L/H): 55 x 120/280 cm
Min. room height: 234 cm
Max. room height: 280 cm
Swing clearance: 164 cm
Maximum projection with ladder unfolded: 129 cm
Height of the folded ladder: 38 cm
Box height: 22.5 cm
Ladder width: 34 cm
Number of steps: 12
Step thickness: 2 cm
Step depth: 8 cm
Step width: 30 cm
Distance between steps: 25 cm
Ladder construction: Folded 3-section
Ladder angle: 69–71.4°
Maximum load: 160 kg
Attic ladder thermal transmittance U-value: 0.64 W/m²K
Hatch thermal insulation thickness: 7.9 cm
Fire resistance: EI 1 / EI 2 60 min.

Materials and finish

• Box material: pinewood
• Ladder material: pinewood
• Hatch: fire-resistant sandwich-type hatch finished with HDF board on both sides, filled with stone wool
• Hatch colour: white
• Feet: plastic

Equipment & installation

• Handrail: 1 (for safe ascent/descent)
• Counterbalancing mechanism: no (standard product)
• Product delivered completely assembled
• Hatch installation method: screwed

Specifications / Technical data

• Model: LWF 60 - 3-section
• Commercial size W x L/H: 55 x 120/280 cm
• Ceiling opening dimensions W x L/H: 55 x 120/280 cm
• Min. room height: 234 cm
• Max. room height: 280 cm
• Swing clearance: 164 cm
• Maximum projection with ladder unfolded: 129 cm
• Height of the folded ladder: 38 cm
• Box height: 22.5 cm
• Box material: pinewood
• Ladder material: pinewood
• Hatch type: fire-resistant sandwich hatch with HDF on both sides, stone wool filled
• Hatch thickness: 8.5 cm
• Hatch thermal insulation thickness: 7.9 cm
• Hatch colour: white
• Hatch lock type: no lock (standard)
• Ladder width: 34 cm
• Ladder construction: folded 3-section
• Number of steps: 12
• Step thickness: 2 cm
• Step depth: 8 cm
• Step width: 30 cm
• Distance between steps: 25 cm
• Ladder angle: 69–71.4°
• Maximum load: 160 kg
• Number of seals in the box: 3 (peripheral seals)
• Attic ladder thermal transmittance (U-value): 0.64 W/m²K
• Fire resistance classification: EI 1 / EI 2 60 min.
• Feet: plastic
• Handrail: 1
• Counterbalancing mechanism: no (optionally available as accessory LXM-W)
• Product weight (packaged): 43.5 kg
• Packaging dimensions (W x L x H): 0.538 m x 1.19 m x 0.396 m
