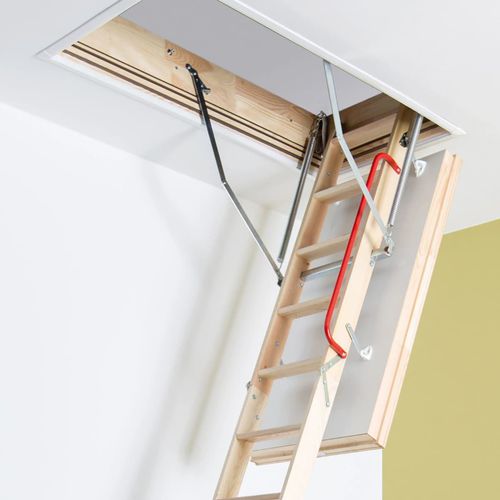

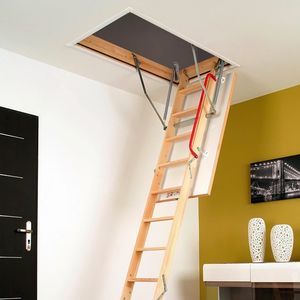

Roof hatch retractable ladder LWT

foldingwoodfor domestic use

Overview
The LWT loft ladder provides an energy-efficient, space-saving access solution for lofts and attics. The product combines an insulated hatch and a three-section folding ladder, delivering reliable thermal performance and compact storage suitable for building projects and renovations.

Three seals — comfort and savings
The LWT is equipped with three peripheral seals to ensure high airtightness and improved insulation. Seals reduce infiltration, enhance thermal and acoustic performance, and help limit heat loss in winter and heat gain in summer, supporting lower energy consumption in conditioned buildings.

Clever design and ease of use
Designed for frequent use, the LWT features anti-slip treads and a stable structure for secure access. An optional handrail provides additional support. The ladder folds into a compact three-section assembly that fits inside the hatch box when stowed, minimizing intrusion into the room.

Hatch
The hatch is a key element for thermal resistance: total thickness 8 cm with 7.4 cm of insulation filling. The insulated sandwich hatch is finished with HDF boards on both faces, offering a smooth white surface that is easy to clean and maintain.

Main features

• Three peripheral seals for airtightness
• Handrail for added safety
• Anti-slip treads
• Folded 3-section ladder for compact storage
• Insulated sandwich hatch finished with HDF boards and filled with Styrofoam
• Simple installation (product delivered fully assembled; attachable flaps / click system)

Technical specifications

• Denomination / model: LWT
• Ceiling opening dimensions (W x L/H): 60 x 120/280 cm
• Minimum room height: 234 cm
• Maximum room height: 280 cm
• Swing clearance: 164 cm
• Maximum projection (ladder unfolded): 130 cm
• Height of folded ladder: 36 cm
• Box height: 22 cm
• Box material: Pinewood
• Ladder material: Pinewood
• Hatch colour: White
• Hatch type: Insulated sandwich hatch finished with HDF board on both sides, filled with Styrofoam
• Hatch thickness: 8 cm
• Hatch thermal insulation thickness (filling): 7.4 cm
• Number of peripheral seals in the box: 3
• Attic ladder thermal transmittance U-value (Uw): 0.51 W/m²K
• Ladder width: 38 cm
• Ladder construction: Folded 3-section
• Ladder angle: 68.8–70.5°
• Number of steps: 12
• Step thickness: 2 cm
• Step depth: 8 cm
• Step width: 34 cm
• Distance between steps: 25 cm
• Maximum load: 160 kg
• Feet: Plastic
• Handrail: 1 (available)
• Counterbalancing mechanism: No
• Product weight: 32.5 kg
• Packaging width: 0.58 m
• Packaging length: 1.19 m
• Packaging height: 0.375 m
• Installation method: Product completely assembled; simple assembly (attachable flaps, click)
• Hatch installation method: Click grip
