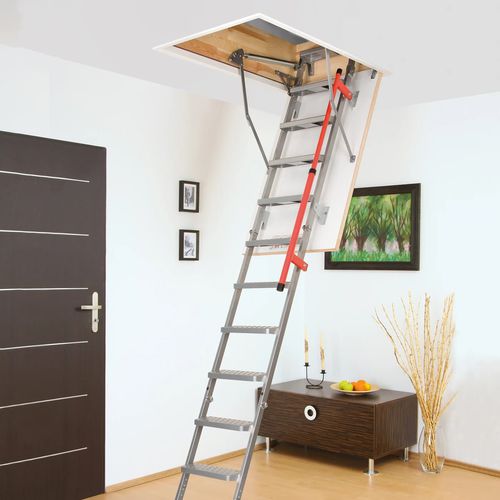

Roof hatch retractable ladder LML LUX

foldingtelescopicsteel

Overview
The LML Lux sectional loft ladder is a foldable 3‑section attic ladder delivered pre-assembled for quick installation in modern interiors. It features a high pinewood box with integrated metal finishing slats and supplied mounting brackets. The steel ladder and stable metal frame provide reliable load capacity and daily use durability.

Stable design and adaptation to high ceilings
The reinforced metal frame and elevated box ensure structural stability and allow installation in thicker ceilings. An additional tread in the box accommodates increased ceiling depth. Ladder length is adjustable without cutting, enabling precise fitting to room heights between 233 and 280 cm.

Safe and comfortable to use
Deep, anti-slip treads and a telescopic handrail with an internal folding/unfolding mechanism improve user safety and ergonomics. The concealed unloading/counterbalancing mechanism and built-in springs ensure controlled opening and closing.

Key features

• Peripheral seal
• Anti-slip treads
• Extendable stile ends
• Telescopic handrail with folding/unfolding mechanism
• Counterbalancing mechanism
• Insulated sandwich hatch

Assistance systems
Telescopic handrail provides secure support on ascent/descent. Built-in springs and counterbalance components prevent sudden hatch drops and facilitate smooth operation.

Notes on installation and equipment
Product delivered completely assembled. Quick ceiling installation using supplied mounting brackets. Hatch is fixed by screws. Metal finishing slats are integrated with the steel frame. Telescopic feet included for final adjustment.

Technical specifications

• Ceiling opening (W x L/H): 60 x 120 / 280 cm
• Commercial size (W x L/H): 60 x 120 / 280 cm
• Installation size (W x L/H): 60 x 120 / 280 cm
• Minimum room height: 233 cm
• Maximum room height: 280 cm
• Swing clearance: 167 cm
• Maximum projection (ladder unfolded): 123 cm
• Height of folded ladder: 31.5 cm
• Box height: 31.5 cm
• Box material: Pinewood
• Ladder material: Steel
• Hatch colour: White
• Hatch type: Insulated sandwich hatch with HDF boards, Styrofoam core
• Hatch lock: None
• Hatch thickness: 3.6 cm
• Ladder width: 39 cm
• Construction: Folded 3-section
• Ladder angle: 70°
• Number of steps: 13
• Step thickness: 3.2 cm
• Step depth: 13 cm
• Step width: 35 cm
• Distance between steps: 25 cm
• Maximum load: 200 kg
• Number of seals in the box: 1
• Hatch thermal transmittance (U‑value): 1.1 W/m²K
• Hatch insulation thickness: 3 cm
• Airtightness class: NPD
• Finishing trims: Metal slats integrated with steel frame
• Feet: Telescopic
• Handrail: Telescopic railing with folding/unfolding mechanism
• Counterbalancing: Yes
• Installation method: Supplied assembled, quick ceiling installation with mounting brackets
• Hatch installation method: Screwed
• Product weight: 56 kg
• Packaging width: 0.64 m
• Packaging length: 1.24 m
• Packaging height: 0.335 m
• Packaging method: Tied with transportation belts
