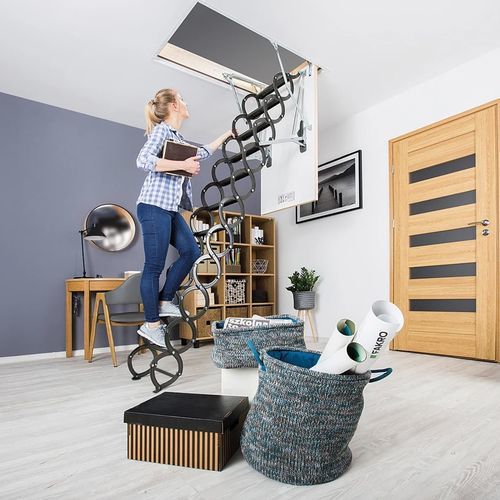

Attic retractable ladder LST

foldingwoodsteel

Overview
The LST loft ladder is a scissor-fold attic access solution combining compact folding, thermal performance and load capacity suitable for professional installation. The 3.6 cm thick insulated hatch reduces heat loss while the robust scissors mechanism provides stable operation. The ladder supports up to 200 kg and complies with EN 14975.

Maximum use of space
The scissors folding system allows a very compact stowed height, making the LST ideal for small ceiling openings and confined attic spaces. It can be extended for higher rooms by adding extra treads without cutting, enabling flexible adaptation on site.

Quick installation
The product is supplied complete with quick-installation brackets and finishing trims. These components simplify fitting and deliver a finished appearance immediately after assembly, reducing installation time on site.

Key features

• Ladder length adjustable to room height (additional treads can be fitted)
• Peripheral seal to improve thermal insulation
• Anti-slip treads for secure ascent and descent
• Quick installation system with mounting brackets
• Insulated sandwich hatch with HDF facing both sides, filled with Styrofoam

Additional products and accessories (selected)

• Additional tread (LSS): extends ladder by 330 mm for higher ceilings; grey finish; quick installation
• Box (with installation brackets): supplied with mounting brackets to simplify fitting
• Stile ends: ensure stable contact with floor to prevent shifting
• Hinge: prevents sudden fall of the hatch for safer operation
• Balustrade LXB-P: optional safety accessory
• Upper hatch LXW: optional upper hatch solution
• Box extension LXN: optional extension to increase box height

Technical specifications

• Model (commercial name): LST
• Brand: FAKRO
• Ceiling opening W x L/H: 50 x 80 / 280 cm
• Min. room height: 230 cm
• Max. room height: 280 cm
• Swing clearance: 150 cm
• Maximum projection with ladder unfolded: 146 cm
• Height of folded ladder: 38.2 cm
• Box height: 18 cm
• Box material: Pinewood
• Ladder material: Steel
• Hatch type: Insulated sandwich hatch with HDF boards both sides, filled with Styrofoam
• Hatch lock type: No lock
• Hatch thickness: 3.6 cm
• Ladder width: 28 cm
• Ladder construction: Scissors
• Ladder angle: 65–69°
• Number of steps: 11
• Step depth: 8 cm
• Step width: 24 cm
• Distance between steps: 24–26 cm
• Maximum load: 200 kg
• Number of seals in the box: 1
• Hatch thermal transmittance U-value: 1.1 W/m²K
• Hatch thermal insulation thickness: 3 cm
• Airtightness class: npd
• Finishing trims: Metal finishing slats
• Counterbalancing mechanism: No
• Installation method: Quick installation system in ceiling (mounting brackets), product fully assembled
• Hatch installation method: Screwed
• Product weight: 36 kg
• Packaging width: 0.49 m
• Packaging length: 0.794 m
• Packaging height: 0.4 m
