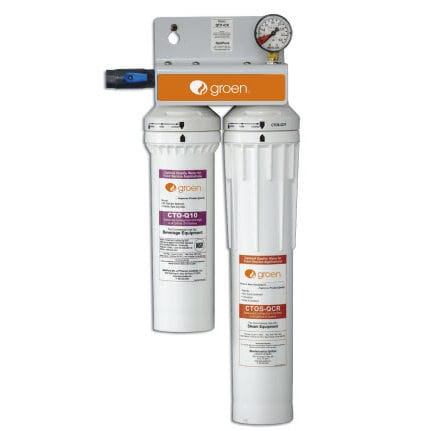

The QTI1+CR is a dual-cartridge water treatment system with two Qwik-Twist cartridges, which reduce
sediment over 0.5 microns, reduce chlorine up to 15,000 gallons and reduce chloramine up to 6,000 gallons,
when operated at a flow rate of 0.5 gpm. The system includes IsoNet®, patented scale-inhibiting technology,
which minimizes the precipitation and accumulation of scale, and provides a protective barrier to help guard
against corrosion.
Reduces maintenance frequency and cost, and
extends equipment life
• Gradient-density depth filtration reduces dirt,
rust, and other debris as small as 0.5 microns to
assure clean, clear water for steam generation
• IsoNet®, patented scale-inhibiting technology,
helps protect equipment against scale and
corrosion for the rated capacity of the system
• CTOS-QCR Catalytic Carbon provides added
protection against chloramines when present in
water supplies
• CTO-Q10 activated carbon filtration protects
equipment against corrosive chlorine
• Sturdy, powder-coated mounting bracket and fullflow inlet shut-off valve simplify installation
• Built-in pressure gauge allows visual monitoring
to interpret when filters need to be changed
• Inlet shut-off valve makes filter replacement quick
and simple
• Utilizes ‘Qwik-Twist’ cartridges that make
changing filters quick, easy and sanitary
• Allow 3” clearance below system for filter cartridge
removal and cartridge replacement
• To be used for treated water connection only
• Detailed installation, operation & maintenance manual
is included with each system
• No activation procedure or flushing is required for
system to perform as specified
