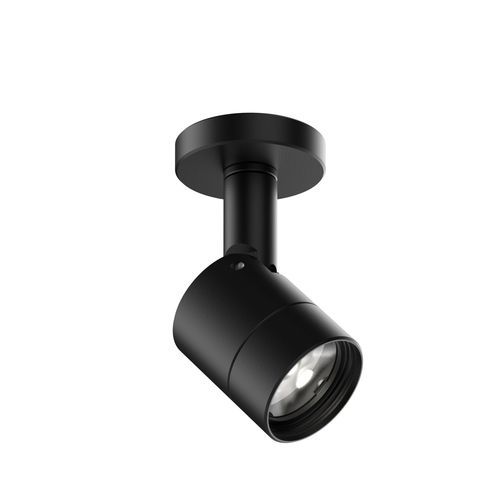

Surface-mounted spotlight AK.TINA 1

LEDcircularindoor

Overview

• Compact brightness: up to ~200 lm at 2–5 W for high light density in a minimal footprint.
• Small size: miniaturised surface-mounted spotlight ideal for applications with strict space constraints, e.g. showcase and display lighting.
• Interchangeable lenses: tool-free lens change for spot, medium, flood and oval flood distributions.
• Extensive accessories: broad accessory range for mounting and optical/customisation options.
• Multiple variants: versions for standard electronic interface and Microtrack 48 V available.

Available product variants (selection from product table)
Header: Article number | Output | Light distribution | Colour temp. | Luminous flux | Interface | Mounting type
12094404721 | 2 W | 36° | 4000 K | 170 lm | electronic | Surface mounted spotlight
12094404907 | 2 W | 36° | 4000 K | 170 lm | electronic | Surface mounted spotlight
12094204907 | 2 W | 14° | 4000 K | 210 lm | electronic | Surface mounted spotlight
12094204721 | 2 W | 14° | 4000 K | 210 lm | electronic | Surface mounted spotlight
12094304907 | 2 W | 27° | 4000 K | 190 lm | electronic | Surface mounted spotlight
12094304721 | 2 W | 27° | 4000 K | 190 lm | electronic | Surface mounted spotlight
12094403907 | 2 W | 36° | 3000 K | 140 lm | electronic | Surface mounted spotlight
12094403721 | 2 W | 36° | 3000 K | 140 lm | electronic | Surface mounted spotlight
12094203907 | 2 W | 14° | 3000 K | 170 lm | electronic | Surface mounted spotlight
12094203721 | 2 W | 14° | 3000 K | 170 lm | electronic | Surface mounted spotlight
12094303907 | 2 W | 27° | 3000 K | 150 lm | electronic | Surface mounted spotlight
12094303721 | 2 W | 27° | 3000 K | 150 lm | electronic | Surface mounted spotlight
12094402907 | 2 W | 36° | 2700 K | 120 lm | electronic | Surface mounted spotlight
12094302907 | 2 W | 27° | 2700 K | 162 lm | electronic | Surface mounted spotlight
12094202721 | 2 W | 14° | 2700 K | 180 lm | electronic | Surface mounted spotlight
12094202907 | 2 W | 14° | 2700 K | 180 lm | electronic | Surface mounted spotlight
12094402721 | 2 W | 36° | 2700 K | 120 lm | electronic | Surface mounted spotlight
12094302721 | 2 W | 27° | 2700 K | 162 lm | electronic | Surface mounted spotlight
12094604907 | 2 W | 12° x 45° | 4000 K | 200 lm | electronic | Surface mounted spotlight (oval flood)
12094604721 | 2 W | 12° x 45° | 4000 K | 200 lm | electronic | Surface mounted spotlight (oval flood)
12094603907 | 2 W | 12° x 45° | 3000 K | 160 lm | electronic | Surface mounted spotlight (oval flood)
12094603721 | 2 W | 12° x 45° | 3000 K | 160 lm | electronic | Surface mounted spotlight (oval flood)
12094602907 | 2 W | 12° x 45° | 2700 K | 175 lm | electronic | Surface mounted spotlight (oval flood)
12094602721 | 2 W | 12° x 45° | 2700 K | 175 lm | electronic | Surface mounted spotlight (oval flood)

Notes on optics & variants

• Interchangeable beams available: 14°, 27°, 36°, oval 12° × 45° (spot / medium / flood / oval flood).
• Colour temperatures offered: 2700 K, 3000 K, 4000 K.
• CRI options: >80 and >90 observed; higher-CRI variants available.
• Finishes observed: black anodised and silver anodised.

Technical specifications

• Model name: ak.tina 1
• Nominal output: 2 W (typical variants)
• Luminous flux range: approximately 120 lm to 210 lm depending on beam and colour temperature
• Example compact brightness: ~200 lm at 2–5 W (manufacturer statement)
• Beam angles: 14°, 27°, 36°, oval 12° × 45°
• Colour temperatures: 2700 K, 3000 K, 4000 K
• Colour rendering (CRI): >80 and >90 variants
• Finish options: black anodised, silver anodised
• Interface: electronic (integrated driver/interface)
• Mounting type: surface mounted spotlight
• Physical length (typical): 30 mm
• Tool-free interchangeable lenses for flexible beam shaping
• Typical applications: showcase/display-case lighting, mini LED spotlight tasks
• Compatibility: variants for Microtrack 48 V available
• Wide accessory range for custom installation and optical configuration
