Recessed ceiling downlight AK.TINA 1
ceiling-mountedLEDcircular

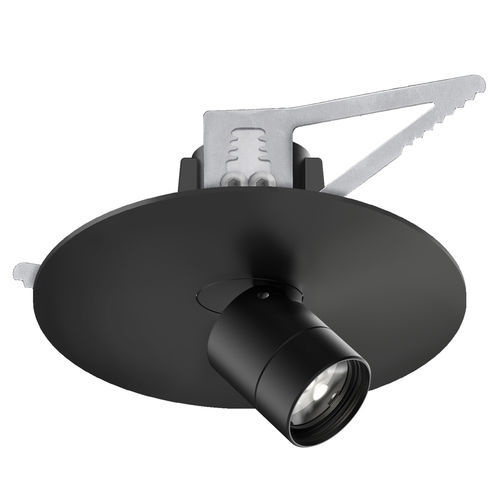

Recessed ceiling downlight - AK.TINA 1 - Hoffmeister Leuchten GmbH - ceiling-mounted / LED / circular
Recessed ceiling downlight - AK.TINA 1 - Hoffmeister Leuchten GmbH - ceiling-mounted / LED / circular
Recessed ceiling downlight - AK.TINA 1 - Hoffmeister Leuchten GmbH - ceiling-mounted / LED / circular - image - 2
Add to favorites
Compare this product

Characteristics

Type
recessed ceiling, ceiling-mounted
Light source
LED
Shape
circular
Interior/exterior use
interior
Applications
commercial, home
Color
black, silver-colored
Style
contemporary
Number of lights
single
Other characteristics
miniature
Length

96 mm
(4 in)

Width

96 mm
(4 in)

Power

Max.: 2 W

Min.: 2 W

Luminous flux

Max.: 210 lm

Min.: 120 lm

Color temperature

Max.: 4,000 K

Min.: 2,700 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 80 unit

Description

Overview
  • Miniature downlight / directional spotlight delivering approx. 2 W LED output and a compact luminous flux (~120–210 lm depending on variant).
  • Designed for applications with minimal system dimensions such as showcase and display-case lighting.
  • Tool-free interchangeable lenses for selectable beam angles (14°, 27°, 36°) enabling spot, medium, flood and oval flood distributions.
  • Available in multiple colour temperatures (2700 K, 3000 K, 4000 K) and CRI options (>80, variants >90).
  • Offered in silver anodised and black anodised finishes; compatible variants for Microtrack 48 V available.


Product variations (excerpt)
  • 12095404907R — 2 W — 36° — 4000 K — 170 lm — downlight directional spotlight
  • 12095204907R — 2 W — 14° — 4000 K — 210 lm — downlight directional spotlight
  • 12095304907R — 2 W — 27° — 4000 K — 190 lm — downlight directional spotlight
  • 12095203907R — 2 W — 14° — 3000 K — 170 lm — downlight directional spotlight
  • 12095402907R — 2 W — 36° — 2700 K — 120 lm — downlight directional spotlight


Technical specifications
  • Rated output: primarily 2 W (compact LED module).
  • Luminous flux: variant range approx. 120 lm to 210 lm depending on beam angle and colour temperature.
  • Beam angle options: 14°, 27°, 36° (interchangeable lenses).
  • Colour temperatures: 2700 K, 3000 K, 4000 K.
  • CRI: standard >80; variants available with >90 CRI.
  • Finishes: silver anodised, black anodised.
  • Mounting / product type: downlight / directional spotlight; also available for Microtrack 48 V.
  • Accessories: extensive range for optical, mounting and control customisation.
  • Typical applications: showcase/display-case lighting and other installations requiring minimal system dimensions.
  • Optical system: rotationally symmetrical optics with lenses replaceable without tools.
