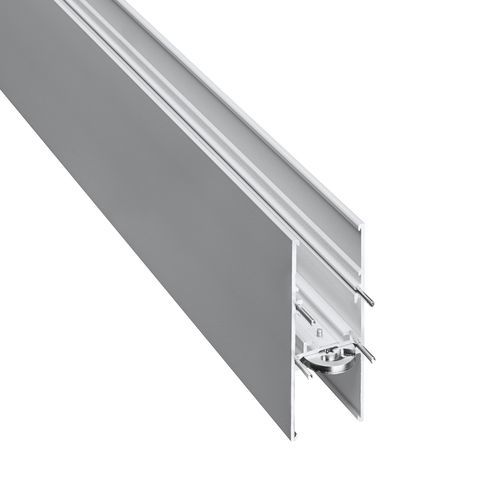

Suspended lighting profile FORM.H44

LEDacrylicextruded aluminum

Product overview

• Multifunctional lighting system: The form.h44 profile provides combined direct and indirect lighting in a modular system. Indirect uplights (linear inserts) illuminate ceilings while spotlights, floodlights in a control.x track and LED downlight inserts deliver direct task or accent lighting.
• Wide range of accessories: Multiple accessories allow customised configurations for retail, exhibition or historic interiors.
• Optional DALI interface: DALI control interface available for dimming and centralized control.
• Optional emergency lighting: Emergency modules (Inotec) can be integrated for safety-critical installations.
• Suitable for high ceilings: Designed for rooms with high ceilings such as museums, galleries and historic buildings.

Profile general features

• Extruded aluminium housing
• Maximum length: 5000 mm
• Coated finishes: black, silver, white
• Clear plastic cover for indirect light insert

Modules (start / middle / end / free)

• Start module: ready for connection with middle, end or free modules; includes control.x DALI track and control.x end feed; extruded aluminium housing; up to 5000 mm; coated black, silver or white; clear plastic cover for indirect insert.
• Middle module: ready for connection with other modules; includes control.x DALI track and control.x middle connector; extruded aluminium housing; up to 5000 mm; coated black, silver or white; clear plastic cover.
• End module: for closing a run or connecting to start/middle modules; includes control.x DALI track and control.x end feed; extruded aluminium housing; up to 5000 mm; coated black, silver or white; clear plastic cover.
• Free module: open on two sides to accommodate additional components; extruded aluminium housing; up to 5000 mm; coated black, silver or white; clear plastic cover.

Uplights (indirect light inserts)

• Purpose: indirect ambient lighting to brighten the ceiling plane.
• Available lengths: 1172 mm, 1472 mm, 1772 mm.
• Power options: 18 W, 23 W, 26 W.
• Control: ON/OFF or DALI.
• Colour temperatures: 3000 K or 4000 K; CRI > 90.

Downlights (direct light inserts)

• Purpose: direct illumination for freely configurable free modules.
• Reflector finishes: black or white.
• Power levels: 14 W, 26 W, 38 W.
• Optics: wide-beam or narrow-beam options.
• Control: ON/OFF or DALI.
• Colour temperatures: 3000 K or 4000 K; CRI > 90.

Direct lighting / spotlights (ak.tina)

• Empty modules can be fitted with ak.tina spotlight heads for accent or task lighting.
• Configurations with 1, 2 or 3 LED heads; rotate 360° and swivel 90°.
• Optics: wide or narrow beam.
• Control: ON/OFF or DALI.
• Available colour temperatures: 2700 K, 3000 K, 4000 K; CRI > 90.

Mounting, suspensions & connection elements

• Suspensions: options for steel cable or pendant rods to suspend profiles and connectors.
• Supply cables: 5- or 7-pin; available in black, white or transparent; painted connection canopies available.
• Mounting elements: clamps and fixtures for cables or rods on profiles and connectors.
• Angle / connectors: 90°, T or X connectors for mechanical connection of start and end modules; extruded aluminium with concealed lower cover and butt connector.
• End caps: end caps for closing profile ends.

Emergency lighting

• Emergency modules integrated in adapter (Inotec) available.
• Individual planning of emergency solutions possible.
• Power supply via control.x control cables.

Variation table
Article number | Length | Colour
10780500910 | 5000 mm | white
10780500906 | 5000 mm | silver
10780500721 | 5000 mm | black
10780400910 | 4000 mm | white
10780400906 | 4000 mm | silver
10780400721 | 4000 mm | black
10780300910 | 3000 mm | white
10780300906 | 3000 mm | silver
10780300721 | 3000 mm | black
10780200910 | 2000 mm | white
10780200906 | 2000 mm | silver
10780200721 | 2000 mm | black
10780100910 | 1000 mm | white
10780100906 | 1000 mm | silver
10780100721 | 1000 mm | black


Technical specifications

• Material: extruded aluminium profile.
• Maximum profile length: 5000 mm.
• Available finishes: black, silver, white (coated).
• Indirect light cover: clear plastic cover for indirect light insert.
• Control options: ON/OFF and DALI; optional DALI interface available.
• Emergency function: optional integrated emergency modules (Inotec); power via control.x.
• Supply cabling: 5- or 7-pin control.x cables.
• Uplights: 1172 / 1472 / 1772 mm; 18 W / 23 W / 26 W; 3000 K or 4000 K; CRI > 90.
• Downlights: multiple power levels and optics; CRI > 90.
• Spotlight heads: ak.tina options with rotation and swivel; wide or narrow optics; multiple colour temperatures; CRI > 90.
