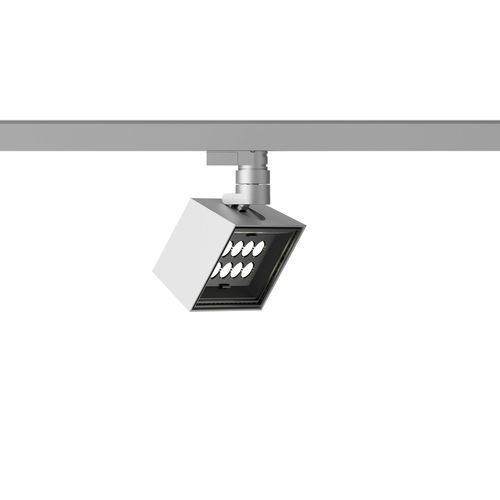

LED track light LI.CO

squaremetalfor office

Product overview

• Power and output: Available in 21 W and 29 W system outputs with luminous flux values depending on configuration (example range ~1280 lm up to ~2530 lm).
• Precise lighting technology: Multiple beam options including narrow spot, spot, medium, flood and oval flood for targeted accentuation.
• Designed for architectural and exhibition lighting: Optimised for galleries, foyers and exhibition spaces to illuminate artworks, exhibits and large vertical surfaces.
• Track-mounted design: Flexible installation on standard track systems for adaptable positioning and aiming.
• Tool-free interchangeable lens system: Rapid on-site change of beam characteristics without tools to adapt to different display situations.
• Control and finish options: Variants with electronic control and some with electronic (DALI); body colours include white, silver and black.

Product variations (excerpt table)
Article number | Output | Beam angle | Colour temp. | Luminous flux | CRI | Interface | Colour
12322504910 | 29 W | 45 ° | 4000 K | 2410 lm | >80 | electronic | white
12322504906 | 29 W | 45 ° | 4000 K | 2410 lm | >80 | electronic | silver
12322504721 | 29 W | 45 ° | 4000 K | 2410 lm | >80 | electronic | black
12322503910 | 29 W | 45 ° | 3000 K | 1850 lm | >90 | electronic | white
12322503906 | 29 W | 45 ° | 3000 K | 1850 lm | >90 | electronic | silver
12322503910D | 29 W | 45 ° | 4000 K | 2410 lm | >80 | electronic (DALI) | white
12322404910 | 29 W | 25 ° | 4000 K | 2530 lm | >80 | electronic | white
12322403910 | 29 W | 25 ° | 3000 K | 1940 lm | >90 | electronic | white
12322402910 | 29 W | 25 ° | 2700 K | 1600 lm | >90 | electronic | white
12322304910 | 29 W | 15 ° | 4000 K | 2500 lm | >80 | electronic | white
12322303910 | 29 W | 15 ° | 3000 K | 1920 lm | >90 | electronic | white
12322204910 | 29 W | 10 ° | 4000 K | 2530 lm | >80 | electronic | white
12322203910 | 29 W | 10 ° | 3000 K | 1940 lm | >90 | electronic | white
12312104910 | 21 W | 7 ° | 4000 K | 1840 lm | >80 | electronic | white
12312103910 | 21 W | 7 ° | 3000 K | 1410 lm | >90 | electronic | white
12312102910 | 21 W | 7 ° | 2700 K | 1280 lm | >90 | electronic | white


Notes on table data
The table above is an excerpt of product variants available: multiple article numbers correspond to variations in beam angle (7°, 10°, 15°, 25°, 45°), system output (21 W / 29 W), colour temperature (2700 K, 3000 K, 4000 K), CRI options (>80, >90), interface options (electronic, electronic (DALI)) and body colour (white, silver, black).

Technical specifications

• Product name / model: li.co
• Product type: Track-mounted spotlight
• Power / system output: 21 W and 29 W variants
• Luminous flux: Example values from variants: approx. 1280 lm up to approx. 2530 lm (depending on configuration)
• Beam angles available: 7°, 10°, 15°, 25°, 45° (selectable via interchangeable lenses for narrow spot, spot, medium, flood, oval flood)
• Lens system: Tool-free interchangeable lens technology for quick beam changes
• Optical distribution: Rotationally symmetrical and other distributions including oval flood and wall-wash options
• Colour temperatures: 2700 K, 3000 K, 4000 K
• CRI options: >80 and >90
• Interface / control: Electronic; selected variants with electronic (DALI)
• Available body colours: White, silver, black
• LED source: Integrated LED modules (variants)
• Intended applications: Galleries, exhibition spaces, foyers, architectural accent and wall illumination
