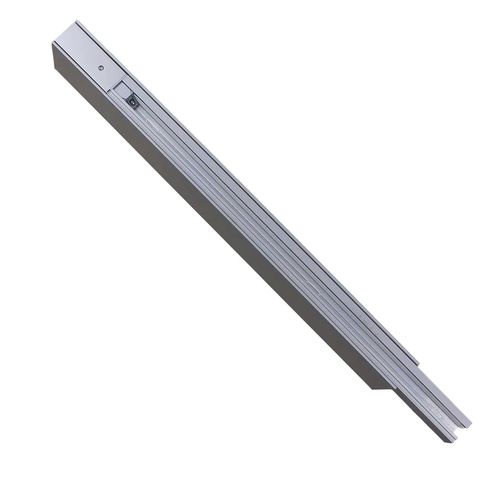

Built-in lighting profile FORM.H44

surface mountedLEDextruded aluminum

Overview

• Multifunctional lighting system: The form.h44 profile system enables direct and indirect lighting effects in multiple applications. Indirect lighting is produced by linear luminaire inserts; direct lighting by spot and flood modules in a control.x track and by direct LED inserts.
• Extensive accessories: Wide range of accessories for customised configurations and diverse installation scenarios.
• Optional DALI interface: Electronic control with optional DALI interface for integrated lighting control.
• Optional emergency function: Emergency lighting can be integrated as an option.
• Recommended applications: Suited to historical rooms, museums and spaces with high ceilings.

Product variations (table columns)
Article number | Mounting type / Product type | Optical system / Module type | Length | Colour | CRI | System output | Interface

Sample variations (representative rows)
107800-600-A50 | Module | Start module | 5000 mm | white | — | — | —
107800-610-A50 | Module | Start module | 5000 mm | silver | — | — | —
107800-620-A50 | Module | Start module | 5000 mm | black | — | — | —
107800-600-M20 | Module | Middle module | 2000 mm | white | — | — | —
107800-600-L50 | Module | Free module | 5000 mm | white | — | — | —
107800-600-E30 | Module | End module | 3000 mm | white | — | — | —
107800-600-D10 | Module | Basic module | 1000 mm | white | — | — | —
10781804000 | luminaire units indirect | (indirect luminaire) | 1772 mm | — | >90 | 26 W | electronic
10781704000 | luminaire units indirect | (indirect luminaire) | 1472 mm | — | >90 | 23 W | electronic
10781604000 | luminaire units indirect | (indirect luminaire) | 1172 mm | — | >90 | 18 W | electronic
10781803000 | luminaire units indirect | (indirect luminaire) | 1772 mm | — | >90 | 26 W | electronic (3000 K variant)
1079364W910 | luminaire units direct | (direct luminaire insert) | 900 mm | white | >90 | 38 W | electronic
1079364B721 | luminaire units direct | (direct luminaire insert) | 900 mm | black | >90 | 38 W | electronic
1079364W910D | luminaire units direct | (direct luminaire insert) | 900 mm | white | >90 | 38 W | electronic (DALI)

Available product filters / selectable options (as shown on page)

• Mounting / product types: Module; luminaire units indirect; luminaire units direct; base profiles
• Optical system / module types: Start module; Middle module; Free module; End module; Basic module
• Colour temperature: 3000 K; 4000 K
• Output / system power: 14 W; 18 W; 23 W; 26 W; 38 W
• Interface: electronic; electronic (DALI)
• Lengths available: 600 mm; 800 mm; 900 mm; 1000 mm; 1172 mm; 1200 mm; 1400 mm; 1472 mm; 1600 mm; 1772 mm; 1800 mm; 2000 mm; 2200 mm; 2400 mm; 2600 mm; 2800 mm; 3000 mm; 4000 mm; 5000 mm
• Colours: white; silver; black
• Reflective surface: white; black

Notes
Multiple modular variants are available (Start / Middle / Free / End / Basic), with several finishes and interchangeable direct and indirect luminaire inserts. The product table maps article numbers to module type, length, colour, output, CRI and interface for precise ordering.

Specifications / technical data

• Product family / model: form.h44 modular profile lighting system
• Functionality: direct and indirect lighting via modules and luminaire inserts
• Module types: Start; Middle; Free; End; Basic
• Available outputs: 14 W; 18 W; 23 W; 26 W; 38 W (variant dependent)
• Colour temperatures: 3000 K; 4000 K
• CRI: >90 for many luminaire variants
• Interfaces: electronic; optional electronic (DALI)
• Optional emergency lighting function
• Standard lengths: 600 mm up to 5000 mm (multiple stepped lengths)
• Finishes: white; silver; black
• Reflector surfaces: white or black
• Accessories: extensive range for customised configurations
• Recommended applications: historical rooms, museums and high-ceiling spaces
