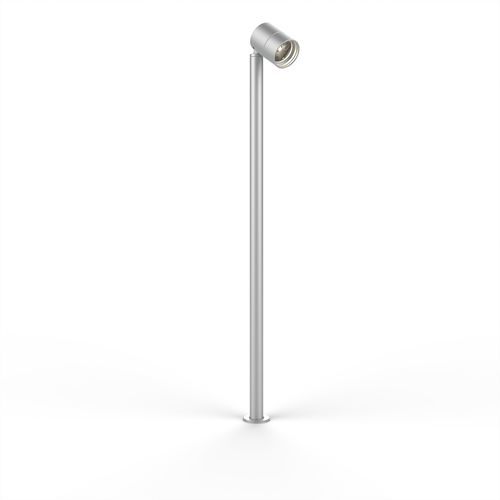

Pole mounted spotlight AK.TINA 1 TOP

LEDroundoutdoor

Product description

• Compact brightness: 200 lm luminous flux at 2 - 5 W.
• Small size: Miniaturised spotlight ideal for applications requiring the smallest possible system dimensions, e.g. showcase and display lighting.
• Interchangeable lenses: Tool-free lens replacement for different beam angles (spot, medium, flood, oval flood) to enable precise lighting control.
• Extensive range of accessories: Wide selection of accessories for customisation and multiple installation options.
• Wide range of variants: Available in multiple finishes, beam angles and colour temperatures; Microtrack 48 V option available for certain variants.

Variants (excerpt from product variation table)
Article number | Output | Beam angle / Light distribution | Colour temp. | Luminous flux | Mounting type | Colour | Length | CRI
12093204907 | 2 W | 14 ° | 4000 K | 210 lm | Pole spotlight | silver anodised | 30 mm | >90
12093304907 | 2 W | 27 ° | 4000 K | 190 lm | Pole spotlight | silver anodised | 30 mm | >90
12093404907 | 2 W | 36 ° | 4000 K | 170 lm | Pole spotlight | silver anodised | 30 mm | >90
12093204721 | 2 W | 14 ° | 4000 K | 210 lm | Pole spotlight | black anodised | 30 mm | >90
12093304721 | 2 W | 27 ° | 4000 K | 190 lm | Pole spotlight | black anodised | 30 mm | >90
12093404721 | 2 W | 36 ° | 4000 K | 170 lm | Pole spotlight | black anodised | 30 mm | >90
12093403907 | 2 W | 36 ° | 3000 K | 140 lm | Pole spotlight | silver anodised | 30 mm | >80
12093403721 | 2 W | 36 ° | 3000 K | 140 lm | Pole spotlight | black anodised | 30 mm | >80
12093203907 | 2 W | 14 ° | 3000 K | 170 lm | Pole spotlight | silver anodised | 30 mm | >80
12093203721 | 2 W | 14 ° | 3000 K | 170 lm | Pole spotlight | black anodised | 30 mm | >80
12093303907 | 2 W | 27 ° | 3000 K | 150 lm | Pole spotlight | silver anodised | 30 mm | >80
12093303721 | 2 W | 27 ° | 3000 K | 150 lm | Pole spotlight | black anodised | 30 mm | >80
12093202907 | 2 W | 14 ° | 2700 K | 180 lm | Pole spotlight | silver anodised | 30 mm | >90
12093202721 | 2 W | 14 ° | 2700 K | 180 lm | Pole spotlight | black anodised | 30 mm | >90
12093302907 | 2 W | 27 ° | 2700 K | 162 lm | Pole spotlight | silver anodised | 30 mm | >90
12093302721 | 2 W | 27 ° | 2700 K | 162 lm | Pole spotlight | black anodised | 30 mm | >90
12093402907 | 2 W | 36 ° | 2700 K | 120 lm | Pole spotlight | silver anodised | 30 mm | >90
12093402721 | 2 W | 36 ° | 2700 K | 120 lm | Pole spotlight | black anodised | 30 mm | >90
12093604907 | 2 W | oval flood | 4000 K | 200 lm | Pole spotlight | silver anodised | 30 mm | >80
12093604721 | 2 W | oval flood | 4000 K | 200 lm | Pole spotlight | black anodised | 30 mm | >80
12093603907 | 2 W | oval flood | 3000 K | 160 lm | Pole spotlight | silver anodised | 30 mm | >90
12093603721 | 2 W | oval flood | 3000 K | 160 lm | Pole spotlight | black anodised | 30 mm | >90
12093602907 | 2 W | oval flood | 2700 K | 175 lm | Pole spotlight | silver anodised | 30 mm | >90
12093602721 | 2 W | oval flood | 2700 K | 175 lm | Pole spotlight | black anodised | 30 mm | >90


Specifications / technical data

• Typical power: 2 W (product variants shown at 2 W).
• Luminous flux (depending on variant and colour temperature): typical values from ~120 lm up to 210 lm.
• Available beam angles / light distributions: 14°, 27°, 36°, oval flood.
• Interchangeable lenses (tool-free) for changing beam characteristics.
• Colour temperature options: 2700 K, 3000 K, 4000 K.
• CRI options: >90 and >80 depending on variant.
• Mounting type shown: Pole spotlight (variant-specific).
• Colour / finish options: silver anodised, black anodised.
• Length (variant data): 30 mm.
• Microtrack 48 V option available for certain variants.
