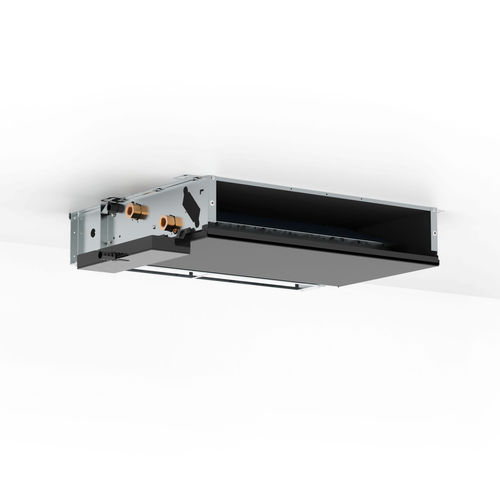

Duct fan coil BRIZA 12

Super slim, super powerful for heating and cooling. A climate unit with a dual personality Provides comfortable heat in winter and refreshing cooling in summer Provides you with an optimum indoor climate throughout the year Ideal for connecting to low-temperature systems like heat pumps, solar energy systems and condensing boilers Options Connection sets Sleeve coupling codes M24 Clock thermostats heating / cooling Pre-mounted Jaga Dynamic Product Controller (JDPC) Power supply DIN-rail montage Pre-mounted power supply Jaga two-way valve and thermoelectric drive 230V Pre-mounted climate control device, ceiling and wall version, built-in or surface-mounted. (Built in Wall) / Ceiling) Depth 12 cm. • 2-pipe or 4-pipe system • heating standard equipped for connection to conventional heating systems • cooling: standard equipped for connection to ice water-power. • ventilation: or connection to mechanical ventilation • to prevent odor nuisance, the condensate drain must be connected to a regularly used drain pipe with a siphon or trap Briza Built-In Height 38 cm and 52 cm. Support frame: made of 1 mm galvanized steel sheet. A minimum installation depth of 13 cm must be possible without problems. The device is equipped with: • a condensation collecting tray and Ø 2 cm drain (wall version) • condensate collection in the front panel, with connection for a drain pipe Ø 2 cm (ceiling version) • insulation to avoid the formation of condensation and to reduce the noise Casing: Height of casing 41 cm or 55 cm. • pre-assembled 1.25 mm thick front panel and side panels made of electrolytically galvanized steel sheet
