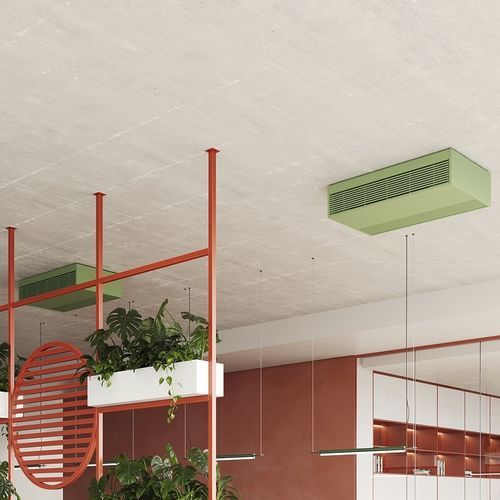

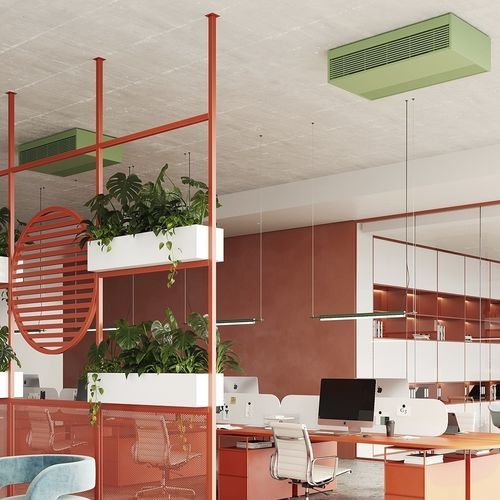

Ceiling-mounted fan coil BRIZA 22

Super-power for heating, cooling and ventilation A climate unit with a dual personality Provides comfortable heat in winter and refreshing cooling in summer Provides you with an optimum indoor climate throughout the year Ideal for connecting to low-temperature systems like heat pumps, solar energy systems and condensing boilers Options Connection sets Pre-mounted Jaga Fancoil controller (JFCC) Clock thermostats heating / cooling Filter BRIZA 22 WALL / CEILING Pre-mounted air conditioning unit, in six lengths, for installation on wall or ceiling. Available in four versions (wall), and two versions (ceiling), each in 2- or 4-pipe connection. 0...10V connection to home automation. Versions: Wall BAMW/BT (Standard version) Pre-mounted casing: top grille / side panels / front panel. • air exhaust at the top • air supply at the bottom Wall BAMW/FT (Optional version) Pre-mounted casing: top grille / side panels / front grille and front panel / bottom panel. • air exhaust at the top • air supply at the bottom BAMW/BF (Optional version) Pre-mounted casing: top panel / side panels / front grille and front panel. • air exhaust at the top • air supply at the bottom BAMW/FF (Optional version) Pre-mounted casing: top panel / side panels / 2x front grille and front panel / bottom panel. • air exhaust at the front (front grille) • air supply at the front (front grille) Briza 22 Ceiling: Pre-mounted air conditioning unit, in five lengths, for installation in ceiling. Available in two versions, each in 2- or 4-pipe connection. Ceiling BAMC/BT (Standard version) Pre-mounted casing: top grille / side panels / front panel. • air exhaust at the top • air supply at the bottom
