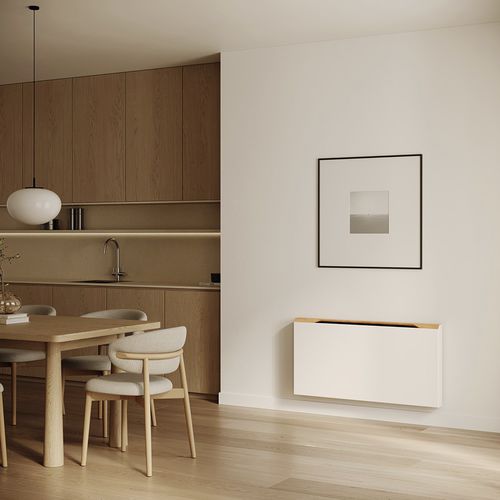

Hot water convector WOODLINE

moderncopperaluminum

Overview

• Energy-efficient heating and cooling in one system
  Briza provides rapid heating in winter, even at low water temperatures, and delivers powerful, comfortable cooling in summer.
• A perfect partner for modern energy systems
  Highly efficient when combined with heat pumps and low-temperature systems.
• Wide range for varied project requirements
  Briza 10, 12, 22 and 26 available as wall-mounted, ceiling-mounted, recessed or freestanding models.
• Four design lines for greater design freedom
  Coreline, Baseline, Woodline and Waveline – offering different material tactility and form expression, from understated to natural and bold.
• Smart & future-proof renovation
  Renovate step by step and seamlessly switch to a heat pump later.

Product lines and types

• Coreline – Type 12, Type 22 (wall)
• Baseline – Type 10, Type 12, Type 22 (wall)
• Woodline – Type 10, Type 12 (wall)
• Waveline – Type 10 (wall)

Features & highlights

• Available as wall-mounted, ceiling-mounted, recessed or freestanding units.
• Aluminium-copper heat exchanger with hydrophilic coating (standard).
• Condensation tray with drain (standard for cooling models).
• Coreline packshots and interior photos show typical finishes and installations.
• Made in Belgium; hybrid heating capable; designed for combination with heat pumps and low-temperature systems.

Outputs (selection table)
Header: Line | Type | System | Airflow | Height (H) [cm] | Length (H) [cm] | Control voltage [2-10V] | Cooling total (7/12/27) [Watts] | Cooling feeling (7/12/27) [Watts] | Non-condensing cooling (16/18/27) [Watts] | Heating (35/30/20) [Watts] | Heating (45/40/20) [Watts] | Heating (50/45/20) [Watts] | Heating (55/45/20) [Watts] | Heating (75/65/20) [Watts] | Sound Pressure Level [dB(A)] | Air flow [m3/u] | Power Consumption [Watts] | Ordercode
81 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 75 | 2 | 284 | 201 | 115 | 223 | 406 | 18,5 | 64,0 | 1,6 | BZMW 041 075 12 XXX 2 L CL DDD
83 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 75 | 4 | 328 | 235 | 135 | 256 | 465 | 29,4 | 101,0 | 2,6 | BZMW 041 075 12 XXX 2 L CL DDD
85 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 75 | 6 | 382 | 276 | 159 | 296 | 537 | 31,3 | 141,0 | 4,3 | BZMW 041 075 12 XXX 2 L CL DDD
87 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 75 | 8 | 441 | 323 | 185 | 346 | 629 | 37,3 | 178,0 | 7,2 | BZMW 041 075 12 XXX 2 L CL DDD
89 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 75 | 10 | 503 | 373 | 214 | 413 | 751 | 42,5 | 214,0 | 13,0 | BZMW 041 075 12 XXX 2 L CL DDD
91 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 95 | 2 | 472 | 334 | 191 | 382 | 695 | 24,0 | 108,0 | 2,5 | BZMW 041 095 12 XXX 2 L CL DDD
93 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 95 | 4 | 529 | 379 | 217 | 421 | 764 | 30,0 | 172,0 | 4,3 | BZMW 041 095 12 XXX 2 L CL DDD
95 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 95 | 6 | 607 | 440 | 252 | 445 | 808 | 36,8 | 223,0 | 7,2 | BZMW 041 095 12 XXX 2 L CL DDD
97 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 95 | 8 | 707 | 518 | 297 | 555 | 1009 | 41,5 | 287,0 | 11,5 | BZMW 041 095 12 XXX 2 L CL DDD
99 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 95 | 10 | 828 | 614 | 352 | 680 | 1236 | 44,5 | 346,0 | 18,0 | BZMW 041 095 12 XXX 2 L CL DDD


Standard delivery

• Laquered casing in sendzimir galvanised steel plate with aluminium top grille.
• Condensation tray with drain (for cooling configurations).
• Aluminium-copper heat exchanger with hydrophilic coating.
• Sturdy casing manufactured from electro-galvanised steel.
• Briza 12: Thermal Activator(s) (tangential mini activator) and stainless steel air filter (where specified).
• Briza 22: Centrifugal fan(s) with twin inlet and replaceable polypropylene dust filter (class G2).

Available documentation

• Briza brochure (product brochure available to download).
• Briza wall brochure (wall-mounted model brochure).
• Briza manual (installation and user manual).
• Briza product description (detailed product description document).
• Briza Selection Tool (spreadsheet selection tool).

Characteristics / technical specifications

• Brand: Jaga.
• Commercial name: Briza Wall.
• Product family: Briza (radiators with heating and cooling capability).
• Mounting: wall-mounted (also available ceiling-mounted, recessed, freestanding in product family).
• Available types: 10, 12, 22, 26 (varies per design line).
• Design lines: Coreline, Baseline, Woodline, Waveline.
• Heat exchanger: aluminium-copper with hydrophilic coating.
• Fans/Activators: Coreline baseline distinctions – Type 12 (tangential activator / thermal activator), Type 22 (centrifugal twin inlet fans).
• Filters: stainless steel air filter (Briza 12 where specified); replaceable polypropylene dust filter (class G2) for units with fans.
• Condensation management: condensation tray with drain for cooling operation.
• Control: control voltage options include 2–10 V (depending on configuration).
• Cooling and heating performance: selection table provides cooling totals and heating outputs for multiple test conditions (numerical outputs included in Outputs table).
• Power consumption and acoustic data: provided per configuration in Outputs table (Power Consumption [Watts], Sound Pressure Level [dB(A)]).
• Certificates / origin: Made in Belgium; designed for hybrid heating and low-temperature systems.
