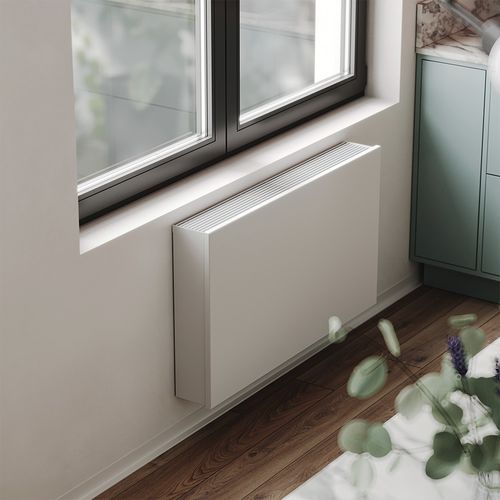

Wall-mounted fan coil BRIZA CORELINE

Overview

• Energy-efficient heating and cooling in one system
  Briza provides rapid heating at low water temperatures and effective cooling during summer, enabling use with low-temperature generation systems.
• Optimised for integration with modern energy systems
  High efficiency when paired with heat pumps and other low-temperature heat sources.
• Range covering varied project requirements
  Briza types 10, 12, 22 and 26 are available as wall-mounted, ceiling-mounted, recessed or freestanding units to suit installation constraints.
• Four design lines for architectural flexibility
  Coreline, Baseline, Woodline and Waveline offer options from discreet to material-oriented expressions.
• Stepwise renovation strategy
  Suitable for phased upgrades: retrofit now and connect to a heat pump later without major changes.

Key features

• Made in Belgium
• Hybrid heating capability (compatible with low-temperature systems)
• Aluminium-copper heat exchanger with hydrophilic coating
• Sendzimir-galvanized steel casing with aluminium top grille (standard)
• Condensation tray with drain (standard)

Design lines & types

• Design lines: Coreline, Baseline, Woodline, Waveline
• Available types: Type 10, Type 12, Type 22, Type 26 (depending on line)
• Mounting options: wall-mounted, ceiling-mounted, recessed, freestanding

Outputs (selection from product output table)
Example data (selection):
Coreline | Type 12 | Control 2–10V | Height 41 cm | Length 75 cm | Cooling total (7/12/27) W: 284 / 201 / 115 | Heating (35/30/20) W: see table | Sound pressure: from 18.5 dB(A) | Airflow: 64.0 m3/u | Power: 1.6 W
Coreline | Type 12 | Control 2–10V | Height 41 cm | Length 95 cm | Cooling total (7/12/27) W: 472 / 334 / 191 | Heating: see table | Sound pressure: from 24.0 dB(A) | Airflow: 108.0 m3/u | Power: 2.5 W

Standard delivery (components)

• Laquered casing in Sendzimir-galvanized steel plate with aluminium top grille
• Condensation tray with drain
• Aluminium-copper heat exchanger with hydrophilic coating
• Sturdy electro-galvanised steel casing

Standard delivery - Briza 12

• Thermal Activator(s) (tangential mini activator)
• Stainless steel air filter

Standard delivery - Briza 22

• Centrifugal fan(s) with twin inlet
• Replaceable polypropylene dust filter (class G2)

Technical specifications

• Product family: Briza (Wall model)
• Design lines: Coreline, Baseline, Woodline, Waveline
• Available types: 10, 12, 22, 26 (depending on line)
• Mounting: wall-mounted, ceiling-mounted, recessed, freestanding
• Compatibility: optimised for heat pumps and low-temperature systems
• Heat exchanger: aluminium-copper with hydrophilic coating
• Standard casing: Sendzimir galvanized steel with aluminium top grille
• Control voltages: 2–10 V options (configuration dependent)
• Acoustic performance: sound pressure levels reported per configuration in dB(A)
• Cooling and heating outputs: multiple rated conditions provided (see Outputs table)
