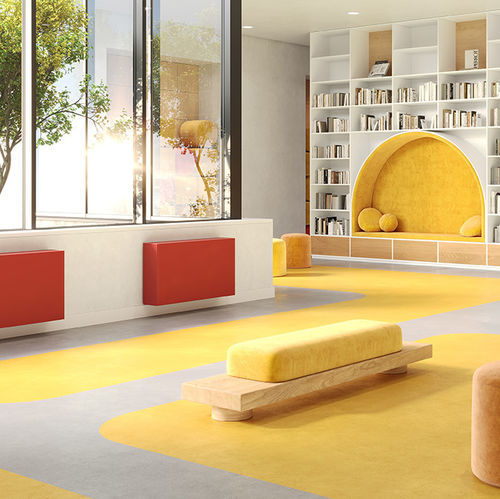

Hot water convector BASELINE

modernaluminumcopper

Product

• Briza Wall — Energy-efficient heating and cooling convector for buildings. Delivers rapid heating at low water temperatures and effective, comfortable cooling.

Key features

• Combined heating and cooling in a single unit suitable for low-temperature systems and heat-pump integration.
• Optimised performance with heat pumps and other low-temperature distribution systems.
• Available sizes and configurations to match project requirements: Briza 10, 12, 22 and 26 as wall-mounted, ceiling-mounted, recessed or freestanding units.
• Four design lines (Coreline, Baseline, Woodline, Waveline) offering distinct visual and material finishes.
• Modular renovation strategy: supports phased upgrades and later switch to heat-pump operation.
• Badges / certifications: Made in Belgium; Hybrid Heating.

Available product lines & types

• Design lines: Coreline, Baseline, Woodline, Waveline.
• Representative types: Type 10, Type 12, Type 22 (packshots available for Coreline and Baseline variants).
• Mounting / configurations: wall-mounted (Briza Wall), ceiling-mounted, recessed, freestanding.

Standard delivery / Included components

• Laquered casing in sendzimir galvanized steel plate with aluminium top grille.
• Condensation tray with drain.
• Aluminium-copper heat exchanger with hydrophilic coating.
• Sturdy casing manufactured from electro-galvanised steel.
• Briza 12: Thermal Activator(s) (tangential mini activator) and stainless steel air filter.
• Briza 22: Centrifugal fan(s) with twin inlet and replaceable polypropylene dust filter (class G2).

Outputs (selected table rows from the product outputs table)
Line | Type | System | Airflow | Height (H) [cm] | Length (L) [cm] | Control voltage [2-10V] | Cooling total (7/12/27) [Watts] | Cooling feeling (7/12/27) [Watts] | Non-condensing cooling (16/18/27) [Watts] | Heating (35/30/20) [Watts] | Heating (45/40/20) [Watts] | Heating (50/45/20) [Watts] | Heating (55/45/20) [Watts] | Heating (75/65/20) [Watts] | Sound Pressure Level [dB(A)] | Air flow [m3/u] | Power Consumption [Watts] | Ordercode
Coreline | Type 12 | 2-pipe | Coreline | 41 | 75 | 2 | 284 | 201 | 115 | 223 | 406 | 497 | 538 | 903 | 18,5 | 64,0 | 1,6 | BZMW 041 075 12 XXX 2 L CL DDD
Coreline | Type 12 | 2-pipe | Coreline | 41 | 75 | 4 | 328 | 235 | 135 | 256 | 465 | 569 | 617 | 1035 | 29,4 | 101,0 | 2,6 | BZMW 041 075 12 XXX 2 L CL DDD
Coreline | Type 12 | 2-pipe | Coreline | 41 | 75 | 6 | 382 | 276 | 159 | 296 | 537 | 657 | 712 | 1194 | 31,3 | 141,0 | 4,3 | BZMW 041 075 12 XXX 2 L CL DDD
Coreline | Type 12 | 2-pipe | Coreline | 41 | 75 | 8 | 441 | 323 | 185 | 346 | 629 | 770 | 834 | 1399 | 37,3 | 178,0 | 7,2 | BZMW 041 075 12 XXX 2 L CL DDD
Coreline | Type 12 | 2-pipe | Coreline | 41 | 75 | 10 | 503 | 373 | 214 | 413 | 751 | 919 | 996 | 1669 | 42,5 | 214,0 | 13,0 | BZMW 041 075 12 XXX 2 L CL DDD
Coreline | Type 12 | 2-pipe | Coreline | 41 | 95 | 2 | 472 | 334 | 191 | 382 | 695 | 850 | 921 | 1545 | 24,0 | 108,0 | 2,5 | BZMW 041 095 12 XXX 2 L CL DDD
Coreline | Type 12 | 2-pipe | Coreline | 41 | 95 | 4 | 529 | 379 | 217 | 421 | 764 | 935 | 1014 | 1699 | 30,0 | 172,0 | 4,3 | BZMW 041 095 12 XXX 2 L CL DDD
Coreline | Type 12 | 2-pipe | Coreline | 41 | 95 | 6 | 607 | 440 | 252 | 445 | 808 | 989 | 1072 | 1797 | 36,8 | 223,0 | 7,2 | BZMW 041 095 12 XXX 2 L CL DDD
Coreline | Type 12 | 2-pipe | Coreline | 41 | 95 | 8 | 707 | 518 | 297 | 555 | 1009 | 1234 | 1338 | 2243 | 41,5 | 287,0 | 11,5 | BZMW 041 095 12 XXX 2 L CL DDD
Coreline | Type 12 | 2-pipe | Coreline | 41 | 95 | 10 | 828 | 614 | 352 | 680 | 1236 | 1513 | 1640 | 2749 | 44,5 | 346,0 | 18,0 | BZMW 041 095 12 XXX 2 L CL DDD

Technical specifications

• Brand: Jaga.
• Commercial denomination (model): Briza Wall.
• Design lines: Coreline, Baseline, Woodline, Waveline.
• Types: 10, 12, 22 (examples shown); 2-pipe and multi-system options referenced in outputs table.
• Mounting: wall, ceiling, recessed, freestanding.
• Standard casing: sendzimir galvanized steel with aluminium top grille; electro-galvanised steel casing.
• Heat exchanger: aluminium-copper with hydrophilic coating.
• Condensation management: condensation tray with drain.
• Filters & fans: Briza 12 includes thermal activators and stainless steel air filter; Briza 22 includes centrifugal twin-inlet fans and polypropylene G2 dust filter.
• Representative dimensions: Height 41 cm; available lengths include 75, 90, 95, 110, 125, 130, 145, 155, 160, 190, 225 cm (see outputs table for examples).
• Acoustic & electrical: Sound pressure levels and power consumption vary by configuration (see outputs table for specific figures).
• Ordercode pattern examples provided per configuration in outputs table.
