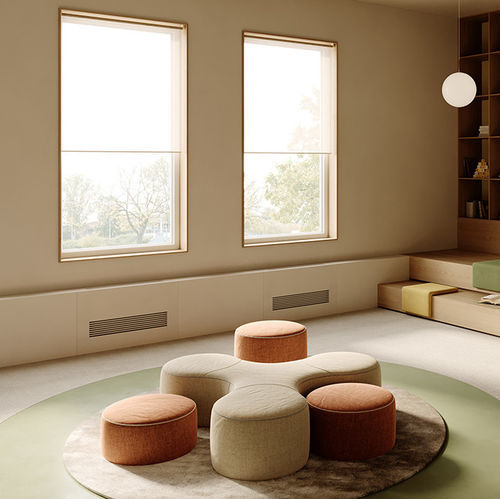

Built-in fan coil BRIZA 12, 22, 26
Add to favorites
Compare this product
Characteristics
- Installation
- built-in
Description
Overview
Key features (listed on product page)
Outputs (selection summary)
Standard delivery (detailed)
Available types and configurations
Technical specifications
- Energy-efficient heating and cooling in one system: Briza delivers effective heating at low water temperatures and comfortable cooling in summer.
- Compatible with modern low-temperature systems: Designed for efficient operation with heat pumps and low-temperature distribution.
- Multiple installation variants: Briza 10, 12, 22 and 26 available as wall-mounted, ceiling-mounted, recessed (built-in wall) or freestanding units.
- Four design lines: Choice of finishes to match interior requirements from understated to bold.
- Phased renovation support: Enables step-by-step renovation with straightforward later integration of a heat pump.
Key features (listed on product page)
- Condensation tray with drain (standard)
- Aluminium-copper heat exchanger with hydrophilic coating (standard)
- Sturdy electro-galvanised steel casing (standard)
- Thermal Activator(s) (tangential mini activator) (standard)
- Stainless steel air filter (standard)
- Made in Belgium
- Hybrid heating capability
Outputs (selection summary)
- Capacities vary by model, length and control settings; refer to the selection table for per-unit values and order codes.
- Example acoustic range: approx. 19 to 45 dB(A) depending on size and airflow.
- Airflow examples in the selection: approx. 70 to 380 m³/h.
- Power consumption examples: approx. 1.6 W up to 18 W for fan/activator components.
- Order code example: BZBW 038 052 12 2 L DDD
Standard delivery (detailed)
- Condensation tray with drain
- Aluminium-copper heat exchanger with hydrophilic coating
- Electro-galvanised steel casing
- Thermal Activator(s) (tangential mini activator)
- Stainless steel air filter
Available types and configurations
- Types: Briza 10, 12, 22 and 26
- Mounting/configuration: wall-mounted, ceiling-mounted, recessed (built-in wall) or freestanding
- Design lines: four finish options from understated to natural and bold
Technical specifications
- Series / commercial name: Briza (built-in wall variant)
- Brand: Jaga
- Function: Combined heating and cooling convector compatible with low-temperature heat pump operation
- Heat exchanger: Aluminium-copper with hydrophilic coating
- Casing: Electro-galvanised steel
- Condensate management: Condensation tray with drain (standard)
- Air treatment: Stainless steel air filter (standard)
- Activation: Thermal Activator(s) (tangential mini activator) included
- Controls: Control voltage options include 2–10 V (see selection table for per-unit control settings)
- Acoustic performance: Approx. 19–45 dB(A) depending on variant
- Airflow: Approx. 70–380 m³/h in provided examples
- Electrical consumption: Approx. 1.6–18 W depending on unit size
- Heating and cooling capacities: See outputs selection table for detailed values across test conditions
- Installation variants and order codes: Order codes provided per configuration in the outputs selection
