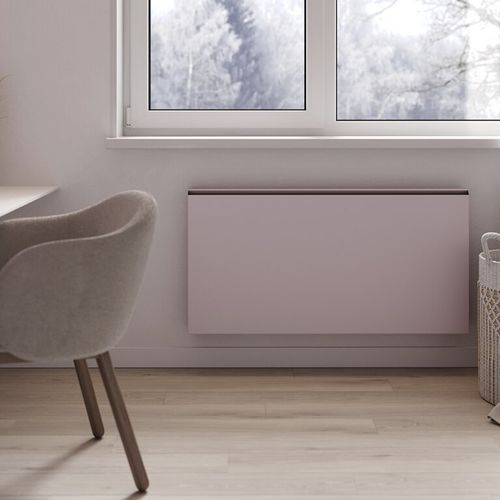

Wall-mounted fan coil WAVELINE

ceiling-mountedfloor-mountedrecessed

Overview

• Energy-efficient heating and cooling in one system
  Briza delivers fast heating even with low water temperatures and provides powerful, comfortable cooling in summer.
• A perfect partner for modern energy systems
  Highly efficient when integrated with heat pumps and low-temperature systems, enabling staged renovation and future-proof upgrades.
• Wide range for varied project requirements
  Available types (10, 12, 22, 26) and multiple mounting options ensure a suitable Briza solution for residential and commercial renovation or new-build projects.
• Four design lines for greater design freedom
  Coreline, Baseline, Woodline and Waveline offer choices from minimal to natural or expressive finishes, facilitating architectural integration.
• Smart & future-proof renovation
  Designed for step-by-step renovation: install now and switch to a heat pump system later without major retrofit.

Design lines

• Coreline
• Baseline
• Woodline
• Waveline

Available models & mounting options

• Types: 10, 12, 22, 26 (availability varies by design line)
• Mounting: Wall (this model), ceiling-mounted, recessed or freestanding

Standard delivery (summary)

• Lacquered casing in sendzimir-galvanized steel plate with aluminium top grille
• Condensation tray with drain
• Aluminium-copper heat exchanger with hydrophilic coating
• Sturdy casing manufactured from electro-galvanised steel
• Briza 12: Thermal activator(s) (tangential mini activator) and stainless steel air filter
• Briza 22: Centrifugal fan(s) with twin inlet and replaceable polypropylene dust filter (class G2)

Outputs / Performance table (excerpt of available configurations and performance values)
Header: Line | Product | Mounting | Design line | Type | Sections | Airflow setting | Control voltage | Cooling total (7/12/27) [W] | Heating (examples by water temp) [W] | Sound pressure [dB(A)] | Airflow [m3/u] | Power consumption [W] | Ordercode
Line 81 | Briza | Wall | Coreline | 12 | 2 | 41 | 2 | 284 / 201 / 115 | 223 / 406 / 497 / 538 / 903 | 18.5 | 64.0 | 1.6 | BZMW 041 075 12 XXX 2 L CL DDD
Line 83 | Briza | Wall | Coreline | 12 | 2 | 41 | 4 | 328 / 235 / 135 | 256 / 465 / 569 / 617 / 1035 | 29.4 | 101.0 | 2.6 | BZMW 041 075 12 XXX 2 L CL DDD
Line 85 | Briza | Wall | Coreline | 12 | 2 | 41 | 6 | 382 / 276 / 159 | 296 / 537 / 657 / 712 / 1194 | 31.3 | 141.0 | 4.3 | BZMW 041 075 12 XXX 2 L CL DDD
Line 87 | Briza | Wall | Coreline | 12 | 2 | 41 | 8 | 441 / 323 / 185 | 346 / 629 / 770 / 834 / 1399 | 37.3 | 178.0 | 7.2 | BZMW 041 075 12 XXX 2 L CL DDD
Line 89 | Briza | Wall | Coreline | 12 | 2 | 41 | 10 | 503 / 373 / 214 | 413 / 751 / 919 / 996 / 1669 | 42.5 | 214.0 | 13.0 | BZMW 041 075 12 XXX 2 L CL DDD
Line 91 | Briza | Wall | Coreline | 12 | 2 | 41 | 2 | 472 / 334 / 191 | 382 / 695 / 850 / 921 / 1545 | 24.0 | 108.0 | 2.5 | BZMW 041 095 12 XXX 2 L CL DDD
Line 93 | Briza | Wall | Coreline | 12 | 2 | 41 | 4 | 529 / 379 / 217 | 421 / 764 / 935 / 1014 / 1699 | 30.0 | 172.0 | 4.3 | BZMW 041 095 12 XXX 2 L CL DDD
Line 95 | Briza | Wall | Coreline | 12 | 2 | 41 | 6 | 607 / 440 / 252 | 445 / 808 / 989 / 1072 / 1797 | 36.8 | 223.0 | 7.2 | BZMW 041 095 12 XXX 2 L CL DDD
Line 97 | Briza | Wall | Coreline | 12 | 2 | 41 | 8 | 707 / 518 / 297 | 555 / 1009 / 1234 / 1338 / 2243 | 41.5 | 287.0 | 11.5 | BZMW 041 095 12 XXX 2 L CL DDD
Line 99 | Briza | Wall | Coreline | 12 | 2 | 41 | 10 | 828 / 614 / 352 | 680 / 1236 / 1513 / 1640 / 2749 | 44.5 | 346.0 | 18.0 | BZMW 041 095 12 XXX 2 L CL DDD

Technical specifications

• Series: Briza (Wall variant shown)
• Design lines: Coreline, Baseline, Woodline, Waveline
• Available types (depth/coil arrangements): 10, 12, 22, 26 (varies by line)
• Heat exchanger: Aluminium-copper with hydrophilic coating
• Casing: Sendzimir-galvanized steel plate; electro-galvanised steel construction
• Top grille: Aluminium
• Condensation management: Integrated condensation tray with drain
• Filters / air treatment: stainless steel air filter (Briza 12); replaceable polypropylene dust filter class G2 (Briza 22)
• Activation / fan: Thermal activator(s) (tangential mini activator) for some types; centrifugal twin-inlet fans for larger types
• Control: Control voltage options (2-10V) available per configuration
• Performance ranges: Cooling totals from a few hundred watts to >800 W; heating capacity varies by water temperature up to >2,700 W for larger configurations
• Sound pressure levels: example values from approx. 18.5 dB(A) to mid-40s dB(A) depending on size and fan setting
• Airflow: example values shown in m3/u (e.g. 64.0 to 346.0 depending on configuration)
• Power consumption: values shown in Watts per configuration
• Ordercode: example format BZMW 041 075 12 XXX 2 L CL DDD — full product code varies by configuration
• Application: Suitable for integration with heat pumps and low-temperature systems; ideal for staged renovation and new-build projects
