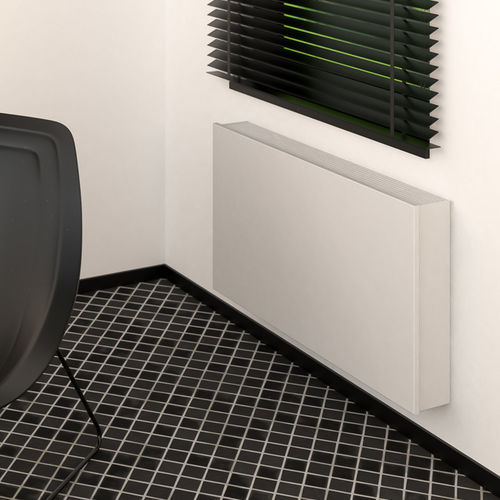

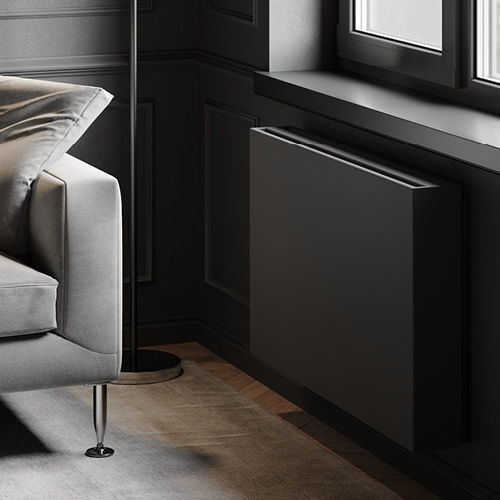

Hot water convector BRIZA WALL

traditionalaluminiumgalvanised steel

Overview
Energy-efficient heating and cooling in one system. Briza Wall provides rapid heating in winter, even at low water temperatures, and delivers powerful, comfortable cooling in summer. It is designed to work efficiently with heat pumps and low-temperature systems and supports step-by-step renovation strategies.

Key benefits

• Combined heating and cooling in one unit: rapid heating at low water temperatures and effective cooling.
• Compatible with modern energy systems: high efficiency with heat pumps and low-temperature operation.
• Wide range of configurations: Types 10, 12, 22 and 26; wall-mounted, ceiling, recessed or freestanding depending on variant.
• Multiple design lines: Coreline, Baseline, Woodline and Waveline for different aesthetics.
• Adaptable renovation approach: supports phased renovation and later conversion to heat pumps.

Product variants / Types

• Type 10 — available in Baseline, Woodline, Waveline
• Type 12 — Coreline, Baseline, Woodline
• Type 22 — Coreline, Baseline
• Type 26 — range reference in product family; check available lines per project

Mounting / Installation

• Wall-mounted (this product page)
• Also available as ceiling-mounted, recessed or freestanding solutions depending on variant

Standard delivery & key components

• Laquered casing in sendzimir galvanized steel plate with aluminium top grille
• Condensation tray with drain
• Aluminium-copper heat exchanger with hydrophilic coating
• Sturdy casing manufactured from electro-galvanised steel
• Briza 12: thermal activator(s) (tangential mini activator) and stainless steel air filter
• Briza 22: centrifugal fan(s) with twin inlet and replaceable polypropylene dust filter (class G2)

Outputs — sample selection (table header then sample rows)
Line | Product family | Mounting | Line (design) | Type | System (pipes) | Product code prefix | Height (H) [cm] | Length [cm] | Control voltage [V] | Cooling total (7/12/27) [W] | Cooling feeling (7/12/27) [W] | Non-condensing cooling (16/18/27) [W] | Heating (35/30/20) [W] | Heating (45/40/20) [W] | Heating (50/45/20) [W] | Heating (55/45/20) [W] | Heating (75/65/20) [W] | Sound Pressure Level [dB(A)] | Air flow [m3/u] | Power Consumption [W] | Ordercode
81 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 75 | 2 | 284 / 201 / 115 | 223 / 406 / 497 | 538 | 903 | 18.5 | 64.0 | 1.6 | BZMW 041 075 12 XXX 2 L CL DDD
83 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 75 | 4 | 328 / 235 / 135 | 256 / 465 / 569 | 617 | 1035 | 29.4 | 101.0 | 2.6 | BZMW 041 075 12 XXX 2 L CL DDD
85 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 75 | 6 | 382 / 276 / 159 | 296 / 537 / 657 | 712 | 1194 | 31.3 | 141.0 | 4.3 | BZMW 041 075 12 XXX 2 L CL DDD
87 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 75 | 8 | 441 / 323 / 185 | 346 / 629 / 770 | 834 | 1399 | 37.3 | 178.0 | 7.2 | BZMW 041 075 12 XXX 2 L CL DDD
89 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 75 | 10 | 503 / 373 / 214 | 413 / 751 / 919 | 996 | 1669 | 42.5 | 214.0 | 13.0 | BZMW 041 075 12 XXX 2 L CL DDD
91 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 95 | 2 | 472 / 334 / 191 | 382 / 695 / 850 | 921 | 1545 | 24.0 | 108.0 | 2.5 | BZMW 041 095 12 XXX 2 L CL DDD
93 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 95 | 4 | 529 / 379 / 217 | 421 / 764 / 935 | 1014 | 1699 | 30.0 | 172.0 | 4.3 | BZMW 041 095 12 XXX 2 L CL DDD
95 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 95 | 6 | 607 / 440 / 252 | 445 / 808 / 989 | 1072 | 1797 | 36.8 | 223.0 | 7.2 | BZMW 041 095 12 XXX 2 L CL DDD
97 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 95 | 8 | 707 / 518 / 297 | 555 / 1009 / 1234 | 1338 | 2243 | 41.5 | 287.0 | 11.5 | BZMW 041 095 12 XXX 2 L CL DDD
99 | Briza | Wand | Coreline | 12 | 2 | BZMW | 41 | 95 | 10 | 828 / 614 / 352 | 680 / 1236 / 1513 | 1640 | 2749 | 44.5 | 346.0 | 18.0 | BZMW 041 095 12 XXX 2 L CL DDD

Materials & filters

• Top grille: aluminium
• Heat exchanger: aluminium-copper with hydrophilic coating
• Filters: stainless steel air filter on some 12-type variants; replaceable polypropylene dust filter (class G2) on 22-type fan variants

Design lines

• Coreline — technical/architectural look
• Baseline — simplified aesthetic
• Woodline — enhanced material tactility and natural look
• Waveline — expressive design

Technical specifications

• Product name / model: Briza Wall
• Brand: Jaga
• Available types: 10, 12, 22, 26 (varies by design line)
• Mounting: wall-mounted (also available ceiling, recessed, freestanding variants)
• Design lines: Coreline, Baseline, Woodline, Waveline
• Heat exchanger: aluminium-copper with hydrophilic coating
• Condensation tray with drain included
• Briza 12: thermal activator (tangential mini activator) and stainless steel air filter
• Briza 22: centrifugal fan(s) with twin inlet; replaceable polypropylene dust filter (class G2)
• Control voltage options: 2–10 V (selectable)
• Lengths: multiple lengths available (examples in table: 75 cm, 95 cm; other length options available up to 225 cm depending on configuration)
• Typical heights: 41 cm (example stock height); other heights available per model selection
• Cooling and heating outputs: see Outputs table for representative performance per configuration
• Acoustic examples: Sound Pressure Level values vary by configuration (dB(A))
• Power consumption and airflow: provided per configuration in the Outputs table
• Filters: stainless steel filter (Briza 12 variants); polypropylene dust filter class G2 (Briza 22 fan variants)
• Made in Belgium (product origin)
