Folding crane LTC 1050-3.1

compacttelescopiclattice

Overview

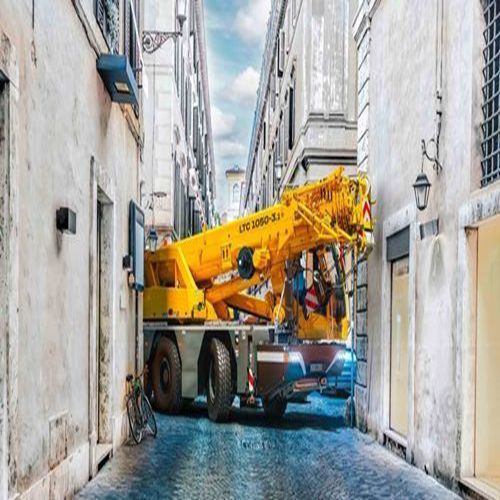

The Liebherr LTC 1050-3.1 is a compact all-terrain crane designed for lifting and manoeuvring in confined sites. Its narrow transport width and VarioBase® support system allow safe operation in tight urban, industrial or heritage environments. The crane carries its own ballast and auxiliary equipment and offers an elevating telescopic cab for improved operator visibility. RemoteDrive enables driving and manoeuvring from outside the cab where better sightlines are required.

What's inside

• Extremely narrow transport width: 2.55 m for access through tight gaps.
• Telescoping elevating cab for enhanced all-round visibility of load and surroundings.
• On-board ballast and equipment: carries full ballast, double folding jib and hook block (axle load approx. 12 t).
• VarioBase® support technology: each outrigger extendable to different lengths for constrained sites.
• Choice of boom systems: TELEMATIK or rope-pull technology.
• RemoteDrive capability for safe outside operation.

Technology & options

• VarioBase®: variable outrigger support to increase safety and lifting capacity in confined conditions.
• RemoteDrive: radio remote control for operating and driving the crane from outside the cabin.
• Lift cabin: telescoping elevating cab with adjustable elevation for optimal view during lifts.
• ECOmode: reduces fuel consumption and noise by adapting engine speed to working conditions.
• ECOdrive: lowers engine speed for quieter, more efficient road driving and improved off-road traction.
• HVO ready: capability to use HVO fuel to reduce CO2 emissions during operation.
• Boom/jib options: TELEMATIK or rope-pull technology; lattice jib and double folding jib combinations available.

Boom / jib combinations

• Telescopic boom: 8.10 m to 36.00 m.
• Lattice jib options: 1.50 m to 13.00 m.
• Configurations available with TELEMATIK or rope-pull technology.

Technical data
Max. load capacity: 50 t
At radius (example): 3.00 m
Telescopic boom: 8.10 m – 36.00 m
Lattice jib: 1.50 m – 13.00 m
Drive engine / make: Cummins
Drive engine: 6-cylinder diesel
Drive engine power: 243 kW
Number of axles: 3
Drive/Steering standard: 6 x 6 x 6
Driving speed: 85.00 km/h
Total ballast: 6.50 t

Specifications

• Model: LTC 1050-3.1
• Max. load capacity: 50 t
• Max. hoist height: 48 m (page reference)
• Max. radius: 39 m (page reference)
• Telescopic boom: 8.10 m to 36.00 m
• Lattice jib: 1.50 m to 13.00 m
• Number of axles: 3
• Drive engine / make: Cummins, 6-cylinder diesel, 243 kW
• Drive/Steering standard: 6 x 6 x 6
• Driving speed: 85 km/h
• Total ballast: 6.50 t
• Cabin: telescoping elevating cab for improved visibility
• Support system: VarioBase® (each outrigger extendable to different lengths)
• Options: RemoteDrive, TELEMATIK or rope-pull technology, ECOmode, ECOdrive, HVO ready
• Special ballast option: for up to 11 t axle load; hook block axle load: approx. 12 t
