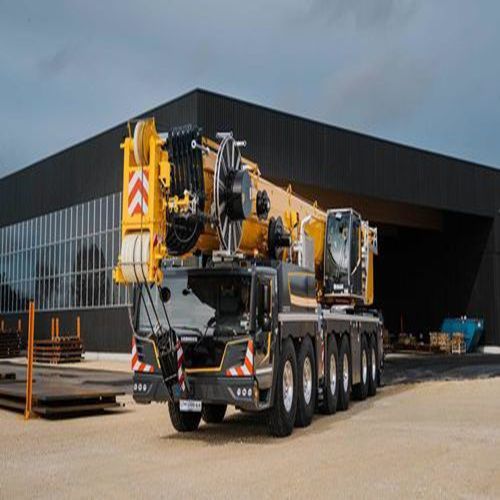

Telescopic crane LTM 1300-6.4

boomtruck-mountedmobile

Overview
The LTM 1300-6.4 from Liebherr is a 6-axle mobile crane developed for high-performance lifts at great heights and steep boom angles. With a 90 m telescopic boom and a 300 t maximum capacity, it is intended for tasks such as tower crane assembly, antenna installation and wind turbine maintenance.

Highlights

• 90 m / 295 ft telescopic boom, road-transportable fully extended with 12 t axle load (world record).
• VarioBase® Plus supporting base: adjustable outrigger lengths and trapezoidal support for increased lifting capacities.
• Mechanically adjustable VarioBallast® for reduced ballast and access to confined sites.
• Load charts with selectable maximum wind speeds (up to 15.6 m/s) for safer operation in windy conditions.
• LICCON3 control system: third-generation controller with faster data bus, increased memory and higher computing power; telematics and fleet-management ready.
• AutoBallast for automated counterweight handling and optimized transport configuration.
• ECOmode and ECOdrive to reduce fuel consumption and noise emissions; improved driving dynamics and lower engine speeds during operation.
• Single-engine concept: superstructure driven by undercarriage engine to increase lifting capacity and simplify design.

Key specifications

• Max. load capacity: 300 t
• Telescopic boom: 14.70 m – 90.00 m
• Max. hoist height: 120 m
• Max. radius: 94 m
• Number of axles: 6

Technical data (table)
Max. load capacity: 300 t
at radius: 3.00 m
Telescopic boom from: 14.70 m
Telescopic boom up to: 90.00 m
Lattice jib from: 4.00 m
Lattice jib up to: 43.00 m
Drive engine / make: Liebherr
Drive engine: 8-cylinder diesel
Drive engine / power: 455 kW
Number of axles: 6
Drive/Steering standard: 12 x 6 x 12
Drive/Steering option: 12 x 8 x 12
Driving speed: 85.00 km/h
Total ballast: 88.00 t

Features / technical specifications

• Model: LTM 1300-6.4
• Max. load capacity: 300 t (at 3.00 m)
• Telescopic boom range: 14.70 m – 90.00 m
• Lattice jib range: 4.00 m – 43.00 m
• Max. hoist height: 120 m
• Max. radius: 94 m
• Drive engine / make: Liebherr, 8-cylinder diesel, 455 kW
• Drive/Steering: standard 12 x 6 x 12; option 12 x 8 x 12
• Driving speed: 85.00 km/h
• Total ballast: 88.00 t
• Key systems: LICCON3, VarioBase® Plus, VarioBallast® (mechanical), AutoBallast, ECOmode, ECOdrive, HVO-ready
