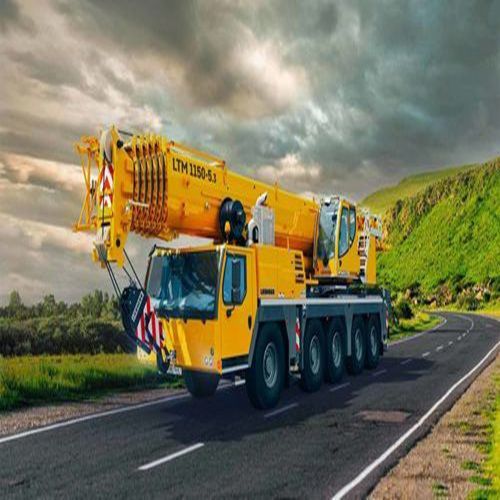

Telescopic crane LTM 1150-5.3

latticeboomtruck-mounted

Overview
The LTM 1150-5.4 is a 150-tonne mobile crane with a telescopic boom up to 66 m and a 5-axle chassis. It is an evolution of the LTM 1150-5.3, updated with the LICCON3 crane control system and enhanced driver assistance functions to improve road and site safety.

Key features

• LICCON3 third-generation control system: higher computing power, fast data bus, increased storage and preparation for telematics and fleet management.
• Economical ballast concept: a large portion of ballast is carried on the crane, reducing the need for additional transport vehicles.
• Long reach and onboard ballast enable many lifts without extra equipment.
• Off-road assistance including Hillstart-Aid to support starts on gradients and prevent rolling back.
• ECOmode and ECOdrive for reduced fuel consumption and lower noise (up to approx. 10%).
• Hook block ballast plates to adapt hook weight to site requirements.
• RemoteDrive for driving and crane operation from outside the cab to improve visibility and safety on site.
• Single-engine concept: superstructure driven from the undercarriage engine to increase lifting capacity.
• VarioBase® variable support system: each outrigger can be extended individually for operations in confined areas.
• AutoBallast: automated ballasting sequence initiated by a single button.
• WindSpeed load charts for lifting at different maximum wind speeds.
• HVO ready: capable of operating with HVO to reduce CO2 emissions.

Main product attributes

• Max. load capacity: 150 t
• Telescopic boom (max): 66 m
• Max. hoist height: 92 m
• Max. radius: 72 m
• Number of axles: 5

Technical data (table)
Max. load capacity — 150 t
at radius — 3.00 m
Telescopic boom from — 12.30 m
Telescopic boom up to — 66.00 m
Lattice jib from — 2.90 m
Lattice jib up to — 26.00 m
Drive engine / make — Liebherr
Drive engine — 6-cylinder diesel
Drive engine / power — 400 kW
Number of axles — 5
Drive / Steering standard — 10 x 6 x 10
Drive / Steering option — 10 x 8 x 10
Driving speed — 85.00 km/h
Total ballast — 45.00 t

Technical specifications

• Model: LTM 1150-5.4
• Maximum load capacity: 150 t
• Telescopic boom: 12.30 m to 66.00 m
• Lattice jib: 2.90 m to 26.00 m
• Maximum hoist height: 92 m
• Maximum radius: 72 m
• Drive engine: Liebherr 6-cylinder diesel, 400 kW
• Number of axles: 5
• Driving speed: 85 km/h
• Total ballast: 45 t
• Notable systems: LICCON3, ECOmode, ECOdrive, RemoteDrive, Hillstart-Aid, VarioBase®, AutoBallast, WindSpeed load charts, HVO ready
