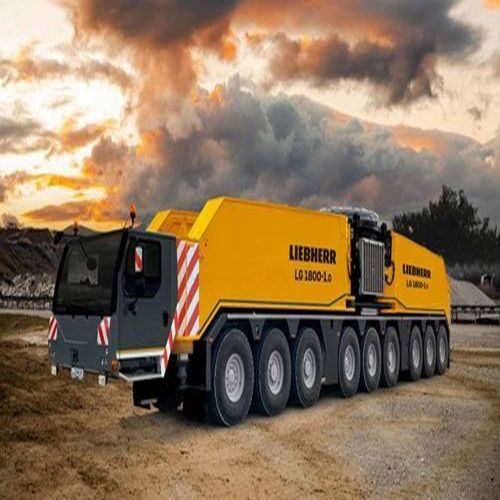

Lattice crane LG 1800-1.0

boomcounterbalancedtruck-mounted

Overview
The LG 1800-1.0 is a lattice boom mobile crane combining wheeled mobility with lattice-boom lifting capacity. Rated for up to 800 t, it integrates technologies and components compatible with the LR 1800-1.0. Key systems include V-Frame®, VarioTray®, ZF TraXon Torque with ECOdrive and WindSpeed load charts, enabling heavy lifts, long reaches and efficient on-road deployment.

What’s inside

• Powerful lattice boom taken from the crawler crane, adaptable to a wide range of hoisting tasks.
• Combination of crawler and all-terrain crane benefits: mobility on roads with lattice-boom lifting performance.
• Integrated innovations such as V-Frame® ballast guide and VarioTray® detachable ballast system.
• WindSpeed load charts for extended operational envelopes at higher wind speeds.
• Transferability of proven LR 1800-1.0 components to reduce setup time and cost.

Key figures

• Max. load capacity: 800 t
• Reference radius: 9.00 m
• Max. hoist height: 204 m
• Max. radius: 156 m
• Number of axles: 9
• Driving speed: 85.00 km/h

Technical data (table)
Max. load capacity: 800 t
At radius: 9.00 m
Max. hoist height: 204 m
Max. radius: 156 m
Number of axles: 9
Main boom, lightweight/heavyweight from: 36 m
Main boom, lightweight/heavyweight up to: 180 m
Drive engine: 8-cylinder diesel
Drive engine / make: Liebherr
Drive engine / power: 505 kW
Crane engine / make: Liebherr
Crane engine: 8-cylinder diesel
Crane engine / power: 455 kW
Drive/Steering standard: 18 x 8 x 18
Driving speed: 85.00 km/h

Ballast systems & accessories

• Rotating-table ballast console with integrated ballast plate.
• Optional V-Frame® for adjustable ballast guidance and derrick counterweight radius.
• VarioTray® detachable ballast pallets for fast ballast handling.
• Accessory compatibility with LR 1800-1.0 components for logistics efficiency.

Transport

• Transport plan designed for economical worldwide movement and reduced transport volumes.
• Multiple boom configurations up to 180 m main boom for long-reach operations.

Technology and performance

• ECOdrive mode for reduced engine speed, improved road efficiency and lower noise during transfer.
• ZF TraXon Torque transmission for high-power driveline performance.
• WindSpeed load charts to extend permissible working conditions in elevated wind.
• HVO-ready option to significantly reduce CO2 emissions during operation.

Characteristics / technical specifications

• Model: LG 1800-1.0
• Type: Lattice boom mobile crane
• Maximum lifting capacity: 800 t
• Operating radius example: 9.00 m
• Maximum hoist height: 204 m
• Maximum radius: 156 m
• Number of axles: 9
• Main boom lengths: from 36 m up to 180 m (lightweight/heavyweight)
• Drive engine: Liebherr 8-cylinder diesel, 505 kW
• Crane engine: Liebherr 8-cylinder diesel, 455 kW
• Drive/steering configuration: 18 x 8 x 18
• Driving speed: 85 km/h
• Key technologies: V-Frame®, VarioTray®, ZF TraXon Torque with ECOdrive, WindSpeed load charts
