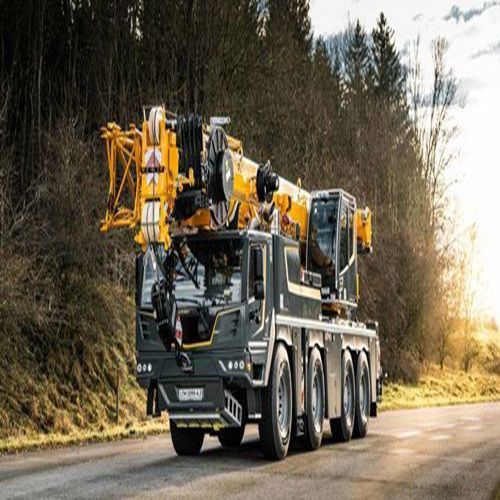

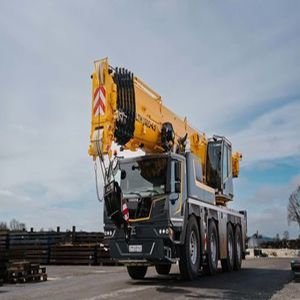

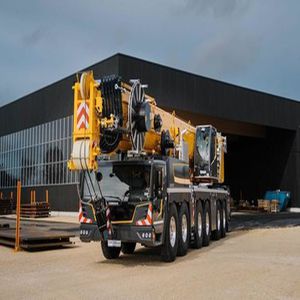

Telescopic crane LTM 1090-4.3

latticeboomtruck-mounted

Overview
The LTM 1090-4.3 is a 90‑ton all-terrain mobile crane upgraded with the LICCON3 control system. It combines extended reach from a 60 m telescopic boom with flexible axle-load configurations for economical worldwide transport. Standard systems such as VarioBase® and VarioBallast® increase operational flexibility, while driver-assistance and ECO functions improve safety and operating efficiency.

What’s inside

• LICCON3: third-generation control with faster data bus, increased memory and computing power; prepared for telematics and fleet management.
• Axle-load flexibility: removable ballast enables axle loads below 10 t for transport compliance.
• ECOmode & ECOdrive: reduced fuel consumption and lower operating noise.
• VarioBase®: variable support technology for maximum lifting capacities as standard.
• VarioBallast®: adjustable ballast system for enhanced jobsite flexibility.

Key features and equipment

• Rated capacity: 90 t
• Telescopic boom: up to 60.00 m (from 11.40 m)
• Max. hoist height: 76 m
• Max. radius: 62.0 m
• Number of axles: 4
• VarioBallast® and VarioBase® as standard
• ECOmode and ECOdrive for reduced fuel consumption and noise
• RemoteDrive for crane operation from outside the driver’s cab
• Hillstart-Aid for easier starts on gradients
• Driver-assistance systems for road safety
• HVO ready for lower CO2 operation

Technical data (table)
Max. load capacity: 90 t
At radius: 3.00 m
Telescopic boom from: 11.40 m
Telescopic boom up to: 60.00 m
Lattice jib from: 2.00 m
Lattice jib up to: 16.00 m
Max. hoist height: 76 m
Max. radius: 62.0 m
Drive engine/make: Liebherr
Drive engine: 6-cylinder diesel
Drive engine/power: 330 kW
Number of axles: 4
Drive/Steering standard: 8 x 6 x 8
Driving speed: 85.00 km/h
Total ballast: 22.50 t


Specifications

• Model: LTM 1090-4.3
• Rated capacity: 90 t
• Telescopic boom: 11.40 m – 60.00 m
• Lattice jib: 2.00 m – 16.00 m
• Max. hoist height: 76 m
• Max. radius: 62.0 m
• Drive engine: Liebherr 6-cylinder diesel, 330 kW
• Number of axles: 4
• Drive/Steering: 8 x 6 x 8
• Top driving speed: 85 km/h
• Total ballast: 22.50 t
• Key systems: LICCON3, VarioBase®, VarioBallast®, ECOmode, ECOdrive, RemoteDrive, Hillstart-Aid, WindSpeed load charts, HVO ready
