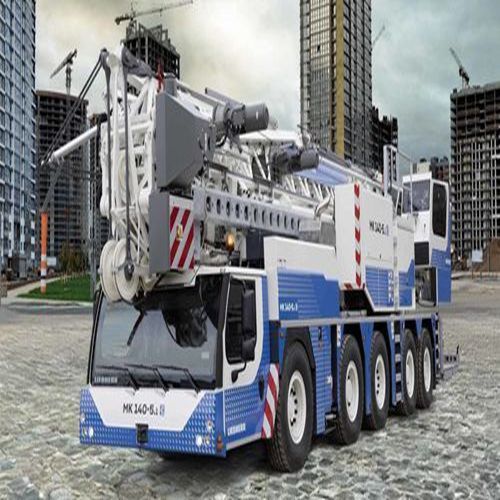

Compact crane MK 140-5.1E

adjustableboomluffing jib

Overview
The MK 140-5.1E mobile construction crane is a five-axle, compact mobile crane delivering lifting capacities and operating ranges typically found in higher axle classes. The Hybrid Power Concept enables operation from site power and the crane is approved for HVO fuels, preparing it for low-emission applications.

Key features

• Quickly ready: Erects within minutes and is operational after only a few actions.
• Urban operation: Multiple steep boom positions allow safe work close to buildings and confined edges at the push of a button.
• Fully electric drives: Winches and drives are powered by electric motors for low-noise, low-emission and efficient operation.
• Unique Vario Jib: Converts from trolley jib to luffing jib within minutes operated by one person.
• Vario Jib performance: In luffing-jib mode achieves a hook height of 94.4 m, a radius of 65 m and a tip load up to 1 t.
• Compact manoeuvrability on 5 axles: Steering programs enable precise manoeuvring in tight urban spaces.

Technical data
Lifting capacity at max. radius: 1,900 kg
Max. radius: 65 m
Max. lifting capacity: 8,000 kg
Standard: EN 14439
Lines (reeving): 2
Max. hook height: 94.40 m
Luffed jib position: 70°
Hoist gear: 24 kW FU
Slewing gear: 7.5 kW FU
Trolley travel gear: 6.0 kW FU
Drive engine: 6-cylinder diesel (Liebherr), 400 kW
Number of axles: 5
Drive unit/Steering: 10 x 6 x 10
Driving speed: 80.00 km/h
Operating weight: 60.00 t
Additional ballast: 9.0 t

Driving conditions

• On-road driving: Configured for legal and efficient road travel between sites.
• Jobsite driving: Setup supports quick changeover between travel and work modes for construction sites.

Ballast systems

• Counterweight: Integrated ballast and additional ballast options for tailored stability and efficient transport.

Technology

• ECOmode: Optimises engine speed to reduce fuel consumption and noise from the superstructure.
• ECOdrive: Lowers engine rpm for quieter road operation, better offroad dynamics and fuel-efficient torque use.
• Hillstart-Aid: Prevents rollback and eases starts on gradients.
• HVO ready: Approved for HVO fuels enabling significantly lower CO2 emissions in operation.
• Zero emissions (electric mode): Crane operation without CO2 emissions when powered electrically.
• VarioJib: Rapid switch between trolley boom and adjustable luffing boom for flexible jobsite adaptation.

Specifications

• Model: MK 140-5.1E
• Type: Mobile construction crane, 5-axle
• Max. lifting capacity: 8,000 kg
• Lifting capacity at max. radius: 1,900 kg
• Max. radius: 65 m
• Max. hook height: 94.40 m
• Luffed jib position: 70°
• Hoist gear power: 24 kW
• Slewing gear power: 7.5 kW
• Trolley travel gear power: 6.0 kW
• Drive engine: 6-cylinder diesel (Liebherr), 400 kW
• Number of axles: 5
• Drive/steering: 10 x 6 x 10
• Driving speed: 80 km/h
• Operating weight: 60.00 t
• Additional ballast: 9.0 t
• Standard compliance: EN 14439
• Lines (reeving): 2
