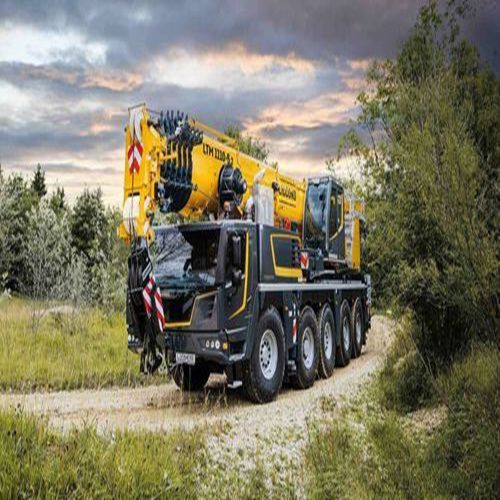

Telescopic crane LTM 1110-5.2

latticeboomtruck-mounted

Overview
The LTM 1110-5.2 is the successor to the LTM 1110-5.1, integrating three core updates: the LICCON3 crane control system, a new driver’s cab and the ZF TraXon DynamicPerform gearbox with an oil-cooled multi‑disk clutch. The 5-axle all-terrain mobile crane is designed for improved operability, telematics integration and fleet management readiness.

What’s inside

• LICCON3: third generation crane control with faster data bus, larger storage and higher computing power; telematics- and fleet-management ready.
• AutoBallast: automatic ballasting at the press of a button to streamline set-up.
• Hillstart-Aid: assists hill starts to prevent rollback.
• VarioBase® Plus: variable support technology enabling increased lifting capacities.
• Variable axle loads: quick-change ballast system enabling axle loads below 10 t for worldwide mobility.
• DynamicPerform clutch: wear-reducing oil-cooled multi-disk clutch module on the TraXon gearbox for smooth manoeuvring.

Key product data

• Max. load capacity: 110 t
• Telescopic boom (max): 60 m
• Max. hoist height: 91 m
• Max. radius: 66 m
• Number of axles: 5

Technical data (table)
Max. load capacity: 110 t
At radius: 3.00 m
Telescopic boom from: 11.50 m
Telescopic boom up to: 60.00 m
Lattice jib from: 2.90 m
Lattice jib up to: 33.00 m
Drive engine / make: Liebherr
Drive engine: 6-Zylinder-Diesel
Drive engine / power: 400 kW
Number of axles: 5
Drive / Steering standard: 10 x 6 x 10
Drive / Steering option: 10 x 8 x 10
Driving speed: 85.00 km/h
Total ballast: 29.00 t

Applications & technology highlights

• Prepared for telematics and fleet management integration.
• ECOmode: minimises fuel consumption and noise emissions for the superstructure by optimising engine speed.
• ECOdrive: reduces engine speed for quieter operation and improved torque efficiency; faster gearshifts for better off-road dynamics.
• Single-engine concept: superstructure driven via shafts from the undercarriage distributor gear; enables removal of one engine to increase lifting capacity.
• RemoteDrive: remote control enabling driving from outside the cab for improved visibility and safety on site.
• WindSpeed load charts: lifting tables adapted for different permissible wind speeds.
• HVO ready: supports use of HVO fuels to reduce CO2 emissions in operation.
• Driver assistance systems: road safety support through environment scanning and warnings.

Specifications / technical features

• Model: LTM 1110-5.2
• Type: 5-axle all-terrain mobile crane
• Max. rated capacity: 110 t
• Reference radius: 3.00 m
• Telescopic boom length (base): 11.50 m
• Telescopic boom length (max): 60.00 m
• Lattice jib (base): 2.90 m
• Lattice jib (max): 33.00 m
• Max. hoist height: 91 m
• Max. radius: 66 m
• Drive engine: Liebherr 6-cylinder diesel, 400 kW
• Number of axles: 5
• Drive / steering (standard): 10 x 6 x 10 (option: 10 x 8 x 10)
• Driving speed: 85 km/h
• Total ballast: 29.00 t
