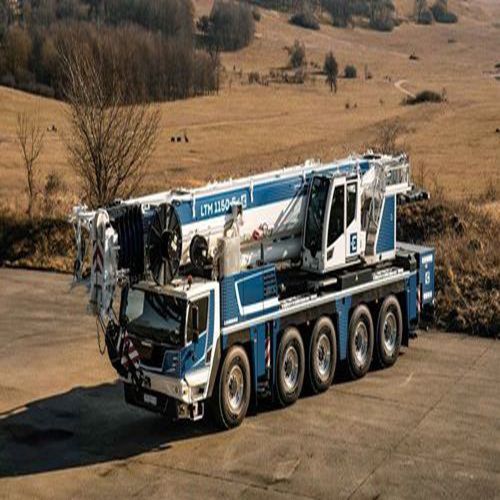

Telescopic crane LTM 1150-5.4E

boomhydraulictruck-mounted

Overview
Based on the LTM 1150-5.4 platform, the LTM 1150-5.4E is an all-terrain mobile crane equipped with a hybrid electro-hydraulic drive. The crane features an electric drive that enables emissions-free crane operations and significantly reduces noise. An integrated battery provides up to four hours of autonomous operation without a mains connection and acts as an efficient buffer to reduce site connection power while deploying full crane power. The LTM 1150-5.4E meets zero-emission site requirements and combines sustainability with high efficiency and advanced onboard technologies.

Highlights / Advantages

• Zero-emission operation: no CO2 emissions during crane operation in electric mode.
• Full power: comparable lifting performance with electric or combustion drive.
• Low noise: significantly reduced sound emissions in electric operation.
• Fast drive changeover: rapid switching between diesel-hydraulic and electro-hydraulic modes for maximum flexibility.
• Plug-in operation: unlimited working time when connected to site power.
• Battery pack option: reduces required connection power and allows autonomous slewing unit operation (up to ~4 hours).

Main characteristics (overview)

• Max. lifting capacity: 150 t
• Telescope boom: up to 66 m
• Max. lifting height: 92 m
• Max. outreach: 72 m
• Number of axles: 5

Technical data (table)
Max. lifting capacity: 150 t
For outreach: 3.00 m
Telescope boom from: 12.30 m
Telescope boom to: 66.00 m
Jib truss from: 2.90 m
Jib truss to: 26.00 m
Travel drive - make: Liebherr
Travel drive: 6-cylinder diesel
Travel drive power: 400 kW
Number of axles: 5
Drive/steering standard: 10 x 6 x 10
Drive/steering option: 10 x 8 x 10
Travel speed: 85.00 km/h
Total ballast: 45.00 t


Technologies & features

• ECOmode: reduces fuel consumption and upper-structure noise by optimising engine speed for the required working output.
• ECOdrive: improves driving comfort and noise on road, optimises diesel torque to minimise consumption.
• Single Engine concept: upper structure can be driven from the chassis engine to save a drive unit and increase payload.
• Hillstart-Aid: supports safe hill starts without rollback.
• RemoteDrive: remote control for manoeuvring and operation from outside the cab for improved safety and visibility.
• LICCON3: third-generation control system with faster data bus, increased storage and processing power; prepared for telemetry and fleet management.
• VarioBase® & AutoBallast: flexible and automatic ballasting solutions to increase safety and lifting capacities.
• WindSpeed load charts & HVO ready: load charts accounting for wind speeds and compatibility with HVO fuel to reduce CO2 emissions.

Characteristics / technical specifications

• Model: LTM 1150-5.4E
• Type: All-terrain mobile crane, hybrid / electro-hydraulic
• Max. lifting capacity: 150 t
• Telescope boom (extension): 12.30 m (base) – up to 66.00 m
• Jib truss: 2.90 m (base) – up to 26.00 m
• Max. lifting height: 92 m
• Max. outreach: 72 m
• Number of axles: 5
• Travel drive: Liebherr, 6-cylinder diesel
• Travel drive power: 400 kW
• Travel speed: 85 km/h
• Total ballast: 45.00 t
• Operating modes: electric (zero-emission), hybrid, plug-in, battery pack autonomous operation (up to ~4 hours)
• Assistance & comfort systems: LICCON3, ECOmode, ECOdrive, RemoteDrive, Hillstart-Aid, VarioBase®, AutoBallast
