Electric bike charging station 2663-020502-0801114_V.1595

for electric scooterpowder-coated steelgalvanised steel

Product overview

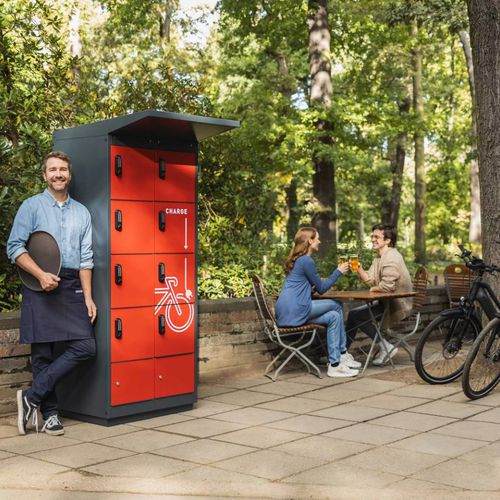

The LOCKEEL® e-bike charging station provides secure, weather-resistant storage and simultaneous charging for batteries of e-bikes, pedelecs, electric scooters and portable equipment. It includes eight individual compartments, each with two protected power outlets.

Construction and materials
The enclosure is manufactured from moisture- and weather-resistant steel sheet with a UV-resistant oven-baked finish. Doors are double-walled for dust and moisture protection, close flush via magnetic catch and include rubber bumpers to reduce noise.

Electrical equipment
Each compartment is fitted with two IP54 sockets (Type F, 230 V, 16 A) with overvoltage protection. Sockets in upper compartments are offset slightly downward for accessibility. The unit includes two service compartments at the base.

Base and installation
The corrosion- and weather-resistant base features adjustable leveling feet and prepared anchoring points for fixed installation. The base is designed for secure mounting on a concrete foundation.

Quality features

• Sheet thickness: body 1.0 mm; doors 1.5 mm
• Two sockets per compartment (Type F, 230 V / 16 A) with surge protection
• Double-walled doors with magnetic catch and rubber bumpers
• Designed for outdoor, weather-exposed locations

Locking and delivery
Compartments are secured with an electronic PIN-code locking system; service compartments are fitted with a cylinder lock as standard. A master key for emergency opening is supplied with delivery. The station is available in several colour options and with alternative locking systems on request.

Assembly instructions
Install the charging station on a stable concrete foundation measuring minimum 86 × 62 cm (recommended depth 50 cm). Route a three-core supply cable (minimum 2.5 mm²) through the centre conduit in the base. A drilling template for anchor points and an installation manual are included.

Technical specifications

• Number of doors: 8
• Compartment depth: 60 cm
• Tray height: 36.9 cm
• Tray width: 40 cm
• Locking system: PIN code lock
• Charging outlet: Type F plug (230 V, 16 A), 2 per compartment, surge protection
• Material: Galvanised steel sheet, UV‑resistant oven-baked paint
• Sheet thickness body: 1.0 mm
• Sheet thickness door: 1.5 mm
• Height: 215 cm
• Depth: 63 cm
• Width: 86 cm
• Weight: 235 kg
