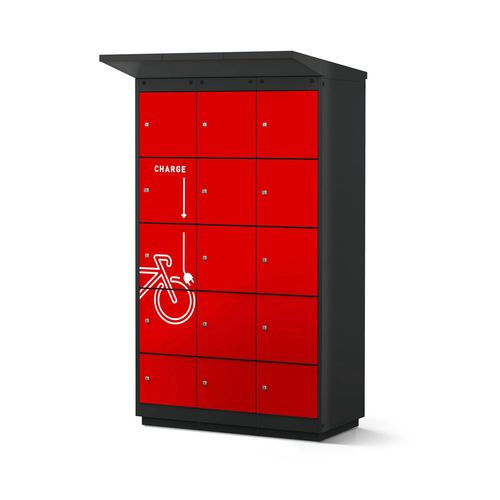

Electric scooter charging station 2663-030501-1201114_V.1598

for electric bikegalvanised steelcustomizable color

Product overview
The LOCKEEL® e-bike charging station stores and charges batteries for e-bikes, pedelecs, electric scooters and portable power tools. It features 12 lockable compartments with integrated double sockets to allow simultaneous, weather-protected charging and storage.

Construction and materials
The cabinet is manufactured from moisture- and weather-resistant galvanized steel sheet with a UV-resistant stove-enamel finish. Double-walled doors provide dust- and moisture-protected storage and close flush with magnetic catches. Doors are fitted with rubber bumpers to reduce noise. The base is corrosion- and weather-resistant, fitted with leveling feet and prepared for ground anchoring.

Electrical equipment
Each compartment includes two IP54 sockets (230 V, 16 A) with overvoltage protection; sockets in the upper compartments are slightly offset for easier access. The unit includes three service compartments located at the bottom. A master key for emergency opening is supplied as standard.

Assembly / Installation
The charging station must be anchored on a stable concrete foundation with minimum dimensions 126 × 62 cm and a recommended depth of 50 cm. Route a conduit with a connection cable through the centre of the foundation (three-core, minimum cross-section 2.5 mm²). A drilling template for anchoring is supplied; follow the operating instructions for detailed installation steps.

Quality features

• Robust construction: body sheet thickness 1.0 mm, door sheet thickness 1.5 mm
• Designed for outdoor use with weather-resistant finish
• Safe simultaneous storage and charging with surge-protected sockets
• Upper sockets offset for improved accessibility

Options
The station is available in various colours and can be supplied with different locking systems on request. The service compartments are fitted with cylinder locks as standard.

Technical specifications

• Number of doors: 12
• Compartment depth: 60 cm
• Tray height: 36.9 cm
• Tray width: 40 cm
• Locking system: Cylinder lock, 2 keys (service compartments: cylinder lock)
• Electrical sockets: 2 × IP54 sockets per compartment (230 V, 16 A) with overvoltage protection; upper sockets slightly offset
• Charging plug type: F-type
• Material: Galvanized steel sheet with UV-resistant stove-enamel finish
• Sheet thickness (body): 1.0 mm
• Sheet thickness (door): 1.5 mm
• Height: 215 cm
• Depth: 63 cm
• Width: 126 cm
• Weight: 350 kg
• Base: corrosion- and weather-resistant with leveling feet; prepared for anchoring
• Foundation requirements: minimum 126 × 62 cm, recommended depth 50 cm; conduit through centre (three-core, min. 2.5 mm²)
