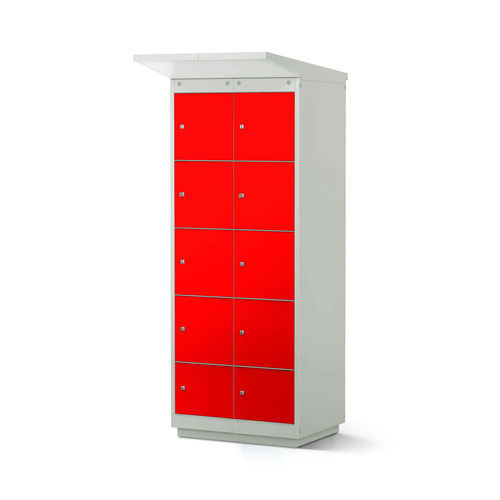

Electric bike charging station 2663-020501-0801114_V.1595

for electric scooterrubbergalvanised steel

Product overview
The LOCKEEL® e-bike charging station provides eight secure compartments with integrated double sockets for simultaneous storage and charging of e-bike batteries, pedelecs, electric scooters, workshop batteries and technical equipment. Designed for outdoor use, it ensures protected charging in public or commercial environments.

Construction and materials
The cabinet is manufactured from moisture- and weather-resistant galvanised steel with a UV-resistant baked enamel finish. Double-walled doors provide dust- and moisture-protected storage; they close flush and are retained by a magnetic catch. Rubber bumpers on the doors reduce impact noise.

Electrical equipment
Each compartment is fitted with two IP54 sockets (230 V, 16 A) with overvoltage protection. Sockets in the upper compartments are slightly offset downwards for better accessibility. The unit also includes two lockable service compartments located at the base.

Base and installation
The rust- and weather-resistant base includes levelling feet and is prepared for firm anchoring to the concrete foundation. Recommended installation requires a stable concrete foundation with minimum dimensions 86 × 62 cm and a recommended depth of 50 cm. A central cable conduit (3-core, min. 2.5 mm²) must be routed through the foundation. A drilling template is supplied.

Quality features

• Robust construction (body sheet: 1.0 mm; doors: 1.5 mm)
• Suitable for e-bikes, pedelecs and electric scooters
• Weather-resistant storage and charging for outdoor use
• Magnetic door catch and rubber bumpers for quiet closing

Assembly instructions
Install the charging station on a stable concrete foundation (min. 86 × 62 cm, recommended depth 50 cm). Route a 3-core connection cable (minimum 2.5 mm²) through the centre conduit. Use the supplied drilling diagram for anchoring. Refer to the operating instructions for detailed electrical and mechanical installation steps.

Downloads
Product datasheet and technical documentation available.

Technical specifications

• Number of doors: 8
• Compartment depth: 60 cm
• Tray height: 36.9 cm
• Tray width: 40 cm
• Locking system: Cylinder lock, 2 keys
• Charging connector: Type F plug
• Material: Galvanised steel sheet
• Sheet thickness body: 1.0 mm
• Sheet thickness door: 1.5 mm
• Height: 215 cm
• Depth: 63 cm
• Width: 86 cm
• Weight: 235 kg
